Ford Escape: Passive Anti-Theft System (PATS) / Removal and Installation - Passive Anti-Theft System (PATS) Transceiver

Removal

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).

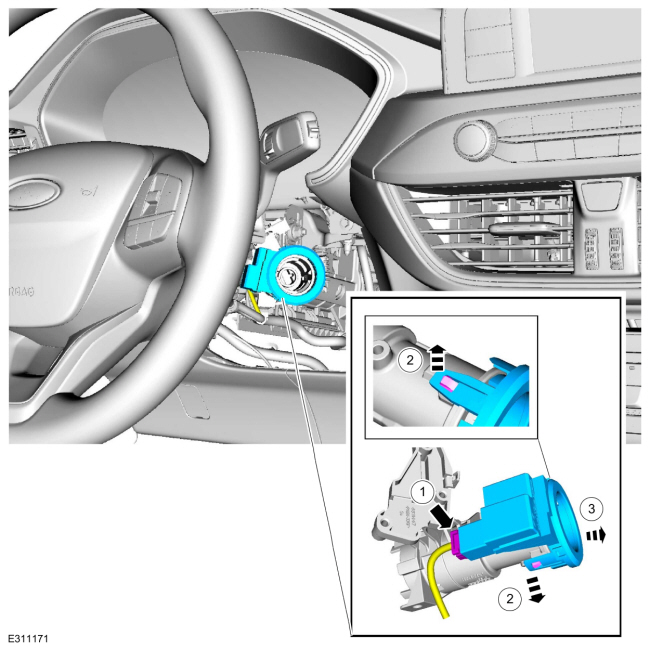

  1. Remove the PATS transceiver.
    1. Disconnect the PATS transceiver electrical connector.
    1. Release the PATS transceiver tabs.
    1. Slide the PATS transceiver off of the ignition housing.

Installation

  1. To install, reverse the removal procedure.
