Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Rear Door Speaker
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH rear door speaker shown, RH rear door speaker is similar.
-
Remove the rear door interior trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-

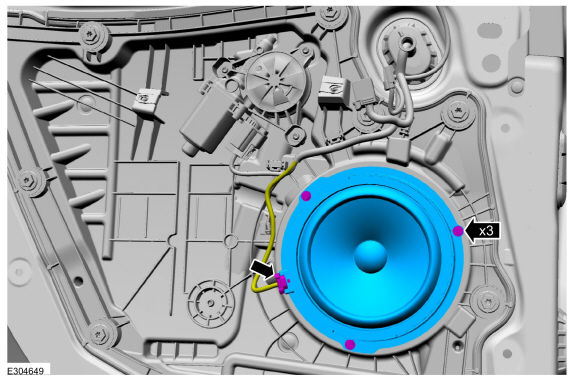

Disconnect the electrical connector, remove the screws and the rear door speaker.
Torque:
13 lb.in (1.5 Nm)
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
Position the speaker and grille up as an assembly.
Use the General Equipment: Interior Trim Remover
Disconnect and remove the speaker and grille as an assembly...
Removal
NOTE:
LH rear door tweeter speaker is shown, RH rera door tweeter speaker is similar.
Remove the LH rear door interior trim panel...
