Ford Escape: Rear Drive Axle/Differential / Removal and Installation - Rear Halfshaft Seal
Special Tool(s) /
General Equipment
 |
205-153
(T80T-4000-W)
Handle |
 |
205-990 Installer, Axle Seal TKIT-2012A-FL TKIT-2012A-ROW |
Flat Headed Screw Driver |
Removal
-
Remove the rear halfshaft.
Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).
-

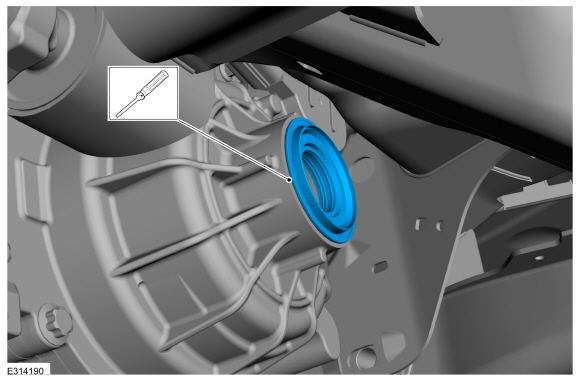

Remove and replace the rear halfshaft seal.
Use the General Equipment: Flat Headed Screw Driver
Installation
-
Inspect the differential housing surface for rust, nicks
and scratches. Polish the differential housing surface with fine crocus
cloth, if necessary.
-
NOTE:
Installation of halfshaft oil seal without the correct tool can result in early seal failure.

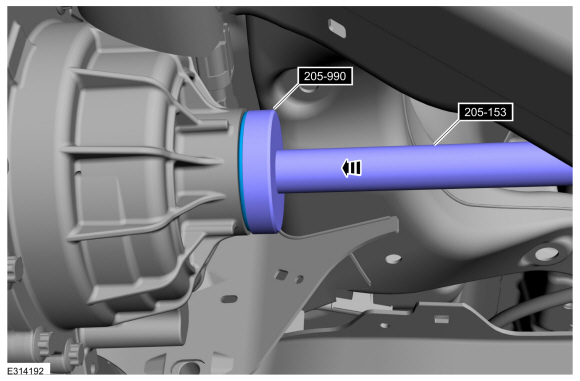

Using the special tool, install the new rear halfshaft seal.
Use Special Service Tool: 205-990
Installer, Axle Seal.
, 205-153
(T80T-4000-W)
Handle.
-
Install the rear halfshaft.
Refer to: Rear Halfshaft (205-05 Rear Drive Halfshafts, Removal and Installation).
-
Check the RDU fluid level.
Refer to: Differential Fluid Level Check (205-02 Rear Drive Axle/Differential, General Procedures).
Materials
Name
Specification
Motorcraft® Disconnect Rear Drive Unit FluidXY-75W-QL
-
Removal
NOTE:
Removal steps in this procedure may contain installation details...
