Ford Escape 2020-2026 Service Manual / Electrical / Instrumentation and Warning Systems / Parking Aid - Vehicles With: Rear Parking Aid / Removal and Installation - Rear Parking Aid Sensor

Ford Escape: Parking Aid - Vehicles With: Rear Parking Aid / Removal and Installation - Rear Parking Aid Sensor

Removal

  1. Remove the rear bumper cover.
    Refer to: Rear Bumper Cover (501-19 Bumpers, Removal and Installation).

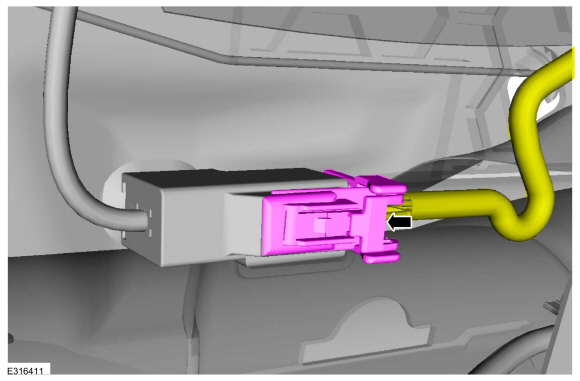

  1. Disconnect the electrical connectors.

  1. Remove the rear parking aid sensor.
    1. Release the tabs.
    1. Remove the sensor.

Installation

NOTE: Make sure that the isolator rings are installed correctly while installing the sensors.

  1. To install, reverse the removal procedure.
  1. Carry out the azimuth system check.
    Refer to: Azimuth System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
  1. Carry out the elevation system check.
    Refer to: Elevation System Check (413-13A Parking Aid - Vehicles With: Rear Parking Aid, General Procedures).
  1. If any sensor fails the checks, diagnose the sensor fault.
    Refer to: Parking Aid (413-13A Parking Aid - Vehicles With: Rear Parking Aid, Diagnosis and Testing).
