Ford Escape: Power Steering / Removal and Installation - Tie Rod

Removal

NOTE: If servicing the RH (right-hand) tie rod, both bellows boots must be removed.
Remove the steering gear boot.
Refer to: Steering Gear Boot (211-02 Power Steering, Removal and Installation).

NOTICE: Hold the steering gear rack while loosening the tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: It may be necessary to turn the steering wheel to (LH) Left-hand side in order to expose the steering gear rack enough to hold with a wrench.

NOTE: The steering gear rack can only be held on the LH side.

NOTE: LH side shown, RH side similar.

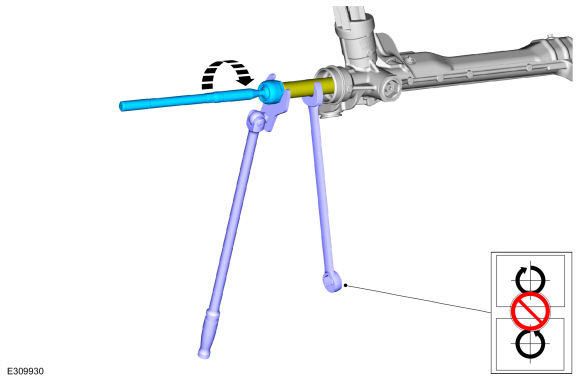

Using an appropriate-sized wrench on the flat/teeth to hold the rack and an appropriate size crows foot wrench or open end wrench, remove and discard the tie rod.

Installation

NOTICE: Hold the steering gear rack while tightening the tie rod. Failure to hold the rack securely could result in steering gear damage.

NOTE: It may be necessary to turn the steering wheel to LH side in order to expose the steering gear rack enough to hold with a wrench.

NOTE: LH side shown, RH side similar.

NOTE: The help of an assistant may be necessary to torque the RH tie rod.
Using an appropriate-sized wrench on the flat/teeth to hold the rack and an appropriate size crows foot wrench or open end wrench, install the tie rod.
Torque: 89 lb.ft (120 Nm)

Install the steering gear boot.
Refer to: Steering Gear Boot (211-02 Power Steering, Removal and Installation).
