Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Universal Serial Bus (USB) Hub

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. NOTICE: After releasing the clips and hooks position the assembly forward off the locating dowels then up or damage to the trim plate may occur.


    Position the console center top trim panel up for access.
    1. Release the clips.
    1. Release the retaining hooks and position front of the assembly up. Position the assembly forward off the rear locating dowels then up.
  1. Disconnect the connectors and remove the console center top trim panel.
  1. Remove the screw cover.
    Use the General Equipment: Interior Trim Remover

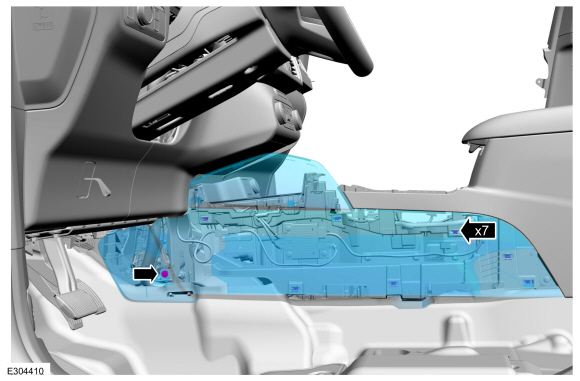

  1. Remove the screw, release the clips and remove the LH console side trim panel.
    Use the General Equipment: Interior Trim Remover

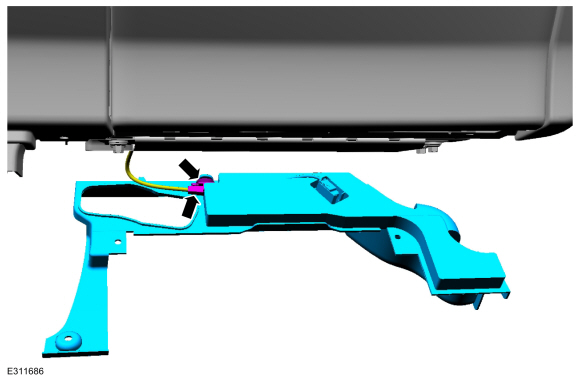

  1. Disconnect the USB cables and the electrical connector.
  1. Remove the screws and the USB hub.

Installation

  1. To install, reverse the removal procedure.
