Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Universal Serial Bus (USB) Port
Removal
Front USB port
-

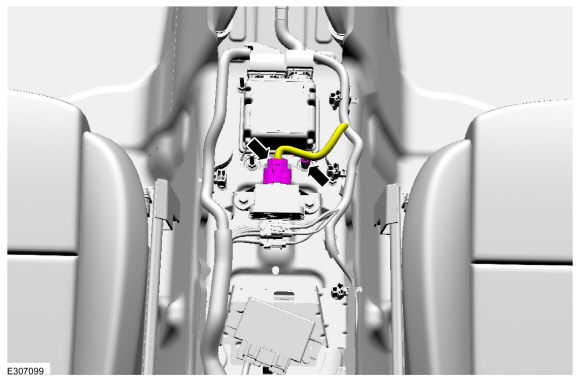

Release the tabs, position the USB port out and disconnect the USB cable.
Rear USB port
-

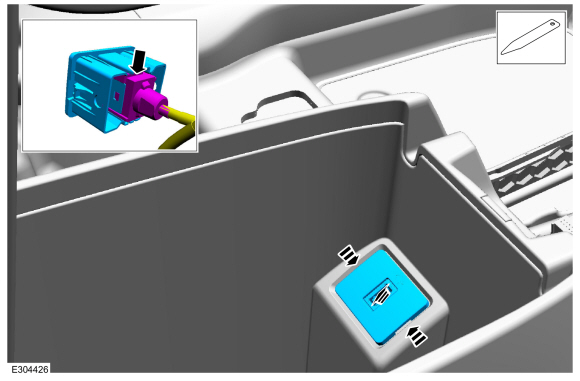

Open the floor console lid.
-
Release the tabs, position the USB port out and disconnect the USB cable.
Installation
-
To install, reverse the removal procedure.
Special Tool(s) /
General Equipment
Interior Trim Remover

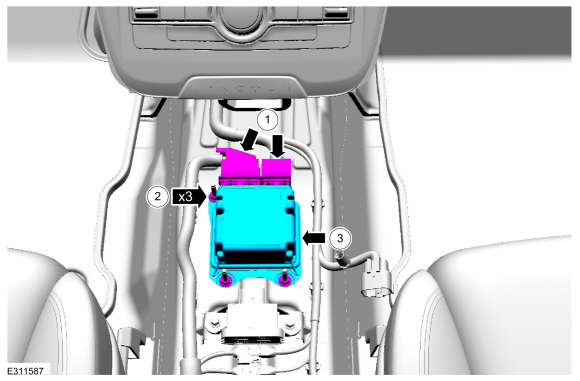

Removal
NOTE:
Removal steps in this procedure may contain installation details...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Lower the headliner.
Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation)...
