Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Voice Microphone

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Lower the headliner.
    Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).

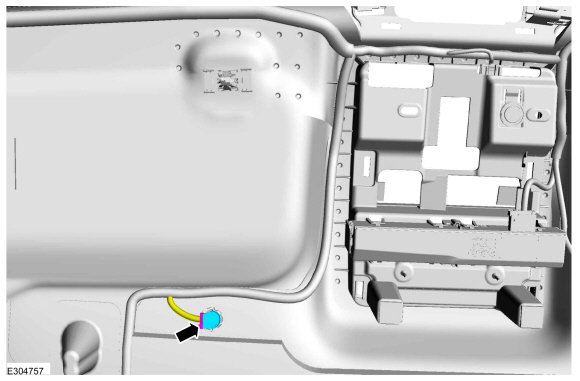

  1. Disconnect the voice microphone electrical connector.

  1. NOTICE: Do not to remove the metal mounting ring or damage to the headliner assembly may occur.

    Release the tabs and remove the voice microphone and bezel as an assembly.
  1. Release the tabs and remove the voice microphone.

Installation

  1. To install, reverse the removal procedure.
