Ford Escape: Body Repairs - Vehicle Specific Information and Tolerance Checks / Description and Operation - Body and Frame

Body

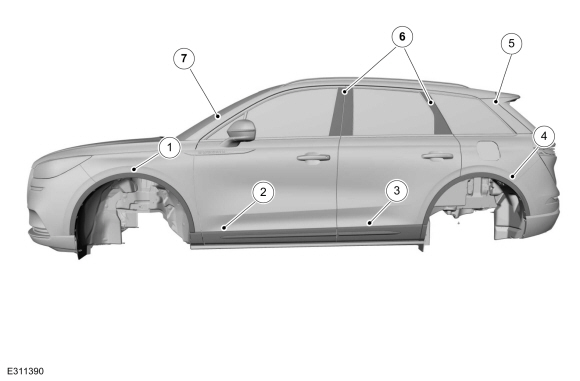

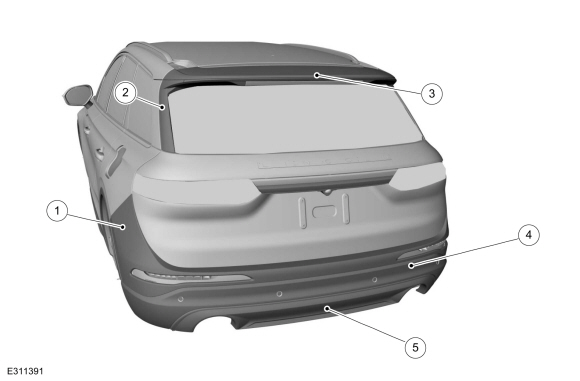

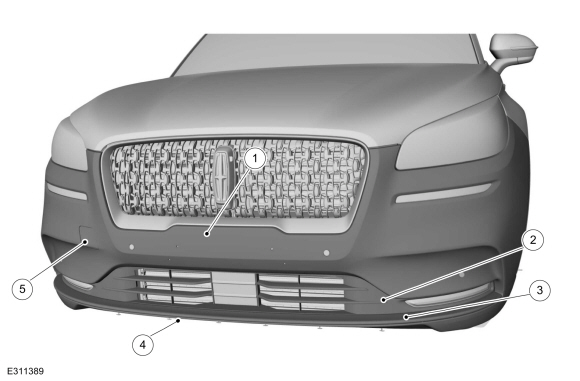

The body consists of the following:

  • Front frame rails constructed of high-strength Dual Phase (DP) 600 steel
  • Rear frame rails constructed of Boron ultra high-strength steel
  • Fender reinforcement tube constructed of Dual Phase (DP) 800 high-strength steel
  • Fender apron assembly constructed of Dual Phase (DP) 600 high-strength steel
  • Liftgate outer panel constructed of mild steel
  • Body structure constructed of Boron, Dual Phase (DP) and high-strength steels
  • Roof panel reinforcements constructed of Dual Phase (DP) 600, Smart and High-Strength Low Alloy (HSLA) 380 steel
  • Bolted, removable front fenders, hinged doors and hood
  • Bodyside outer panels constructed of mild steel
  • Mastic pads used on floor pan for sound deadening

Under Hood Dimensions

NOTE: All dimensions are on center unless otherwise indicted.

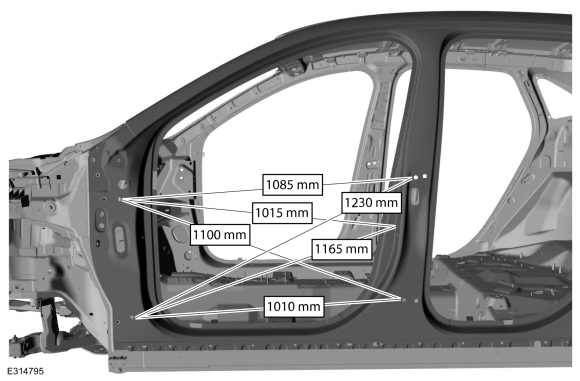

Front Door Opening Dimensions

NOTE: All dimensions are on center unless otherwise indicted.


Rear Door Opening Dimensions

NOTE: All dimensions are on center unless otherwise indicted.

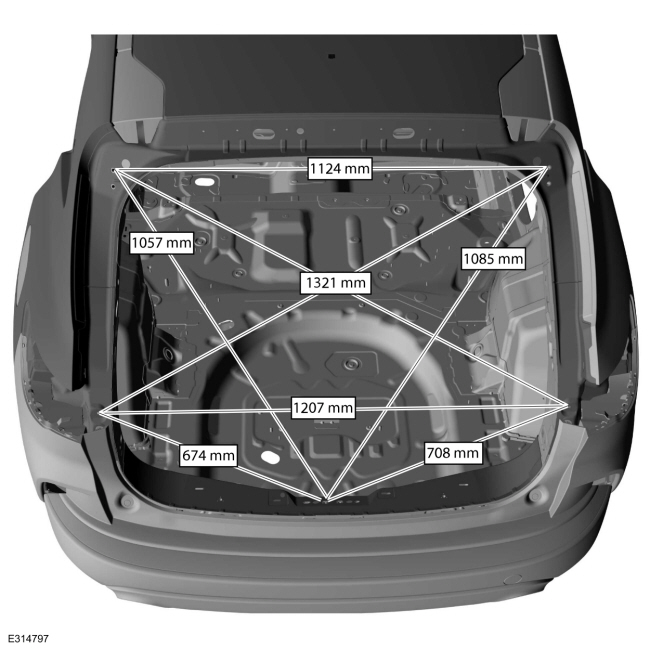

Lift Gate Opening Dimensions

NOTE: All dimensions are on center unless otherwise indicted.


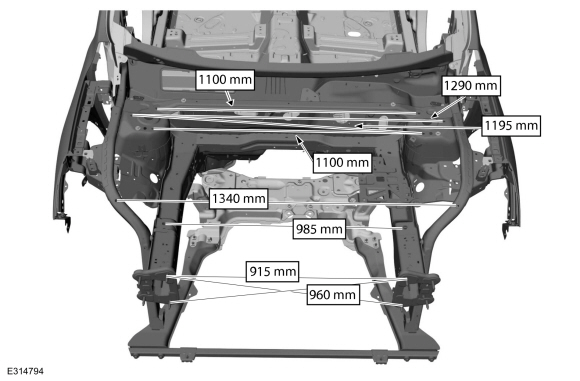

Under Body Dimensions

NOTE: All dimensions are on center unless otherwise indicted.


Datum Height Dimensions

    Body Repairs - Vehicle Specific Information and Tolerance Checks

    ..

    Description and Operation - Vehicle Specific Body Construction

    For recommended metal repair guidelines and recommendations, refer to the following illustrations and: For additional information, refer to: Specifications (501-25 Body Repairs - General Information, Specifications)...
