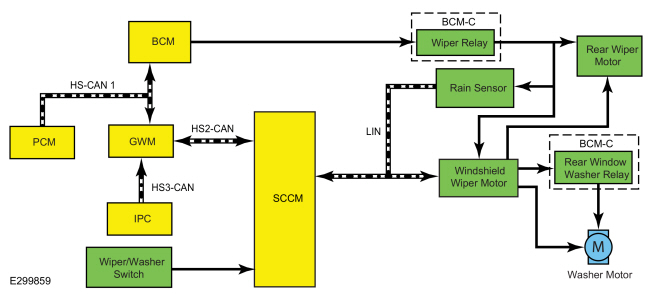

Ford Escape: Wipers and Washers / Removal and Installation - Windshield Washer Pump
Materials
Name |
Specification |
Motorcraft® Premium Windshield Wash Concentrate with Bitterant ZC-32-B2 |
WSS-M14P19-A
|
Removal
-
Remove the windshield washer reservoir.
Refer to: Windshield Washer Reservoir (501-16 Wipers and Washers, Removal and Installation).
-
NOTE:
Be prepared to collect escaping fluid.
Remove the windshield washer pump.
-
Disconnect the windshield washer pump electrical connector.
-
Disconnect the washer hose couplings.
Refer to: Washer Hose Coupling (501-16 Wipers and Washers, General Procedures).
-
Remove the windshield washer pump.
Installation
-
NOTICE:
Do not operate the washer pump prior to filling the
windshield washer reservoir. Failure to follow this instruction may
result in premature pump failure.
To install, reverse the removal procedure.
Material: Motorcraft® Premium Windshield Wash Concentrate with Bitterant
/ ZC-32-B2
(WSS-M14P19-A)
