Ford Escape: Automatic Transmission - Automatic Transmission – HF45 / Description and Operation - Transmission Description - Overview
Transmission Overview
The Electronically Controlled Continuously Variable Transmission (eCVT) has the following internal components:
- Traction Motor
- Generator/Starter
- High voltage terminals
- Pump and filter assembly
- Park lock actuator
- TFT sensor
- Planetary carrier
- Differential carrier
- High voltage inductor
| Item | Description |
|---|---|
| 1 | Traction Motor |
| 2 | Generator/Starter |
| 3 | High voltage terminals |
| 4 | Pump and filter assembly |
| 5 | Park lock actuator |
| 6 | Transmission Fluid Temperature (TFT) sensor |
| 7 | Planetary carrier |
| 8 | Differential carrier |
When the transmission range is in the park position the park pawl locks the final drive to the transmission case and the vehicle cannot be moved. The vehicle can be turned on and the ready indicator light illuminates to indicate the selector lever can be moved out of park and the vehicle can be driven.
When the transmission range is in the reverse position, the ISC (inverter system controller) changes the polarity of the field coil which reverses the electric motor to move the vehicle in reverse.
When the transmission range is in the neutral position, the electric motor does not provide power to or hold the final drive and the final drive can spin freely.
When the transmission range is in the drive position, the ISC provides high voltage current to the electric motor to transfer torque to the final drive.
When the transmission range is in the low position, the transmission increases regenerative braking when the accelerator pedal is released to provide an engine braking feeling and increased battery charging.
Identification Tags

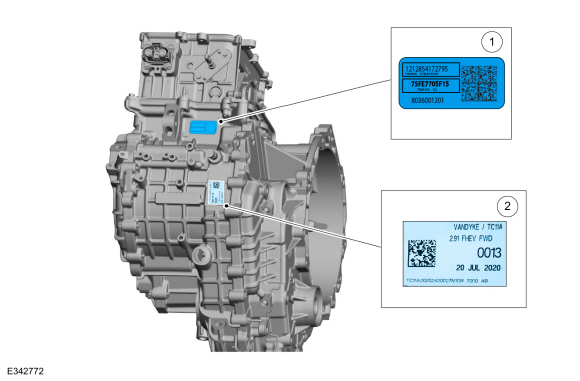

Identification Tag Location
.jpg)
| Item | Description |
|---|---|
| 1 | Transmission strategy tag |
| 2 | Transmission identification tag |
Identification Tags
Transmission Identification Tag
.jpg)
| Item | Description |
|---|---|
| 1 | Assembly plant |
| 2 | Transmission build date |
| 3 | Transmission part number |
| 4 | Transmission serial number |
Transmission Strategy Tag
| Item | Description |
|---|---|
| 1 | 13 digit transmission strategy |
| 2 | 11 digit transmission identification |
Description and Operation - Pump Assembly - Plug-In Hybrid Electric Vehicle (PHEV)
Transmission Fluid Pump
Item
Part Number
Description
1
7A1037A103
Pump assembly
2
7P0867P086
Transmission fluid auxiliary pump
The
transmission fluid pump is an internal pump bolted to the transmission
case...
Description and Operation - Transmission Description - Hybrid Electric Vehicle (HEV) - Component Location
HF45 Transmission
Item
Part Number
Description
1
70487048
Input shaft oil seal
2
11771177
Right Hand (RH) halfshaft seal
3
----
Damper housing/cover assembly to transmission case bolts (27 required)
4
79757975
Damper housing
5
7F4097F409
Transmission oil sump baffel
6
7D2887D288
Oil collector plate
7
7D2887D288
..
