Ford Escape: Maintenance / Drive Belt Routing Overview - 1.5L EcoBoost™ and 2.0L EcoBoost™

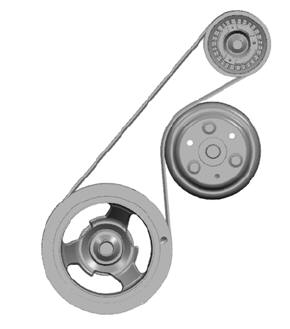

1.5L EcoBoost™

Ford Escape. Drive Belt Routing Overview - 1.5L EcoBoost™ and 2.0L EcoBoost™

2.0L EcoBoost™

Ford Escape. Drive Belt Routing Overview - 1.5L EcoBoost™ and 2.0L EcoBoost™

  1. The long drive belt is on the first pulley groove closest to the engine.
  2. The short drive belt is on the second pulley groove farthest from engine.
