Ford Escape 2020-2026 Service Manual / Body and Paint / Body and Paint / Wipers and Washers / General Procedures - Rear Window Wiper Blade and Pivot Arm Adjustment
Ford Escape: Wipers and Washers / General Procedures - Rear Window Wiper Blade and Pivot Arm Adjustment
Adjustment
-
Cycle and park the rear window wiper.
-

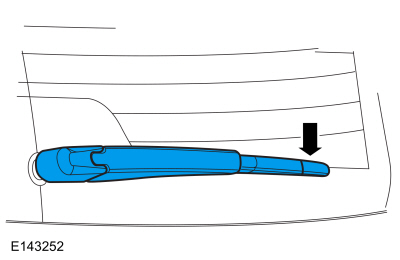

Verify the rear wiper blade is positioned at the first defroster line located on the rear window glass.
.jpg) |
-
If necessary, remove the rear wiper pivot arm and
reposition it to line up with the first defroster line located on the
rear window glass.
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation).
