Ford Escape: Front End Body Panels / Removal and Installation - Active Grille Shutter

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the cooling module.
    Refer to: Cooling Module (303-03A Engine Cooling - 1.5L EcoBoost (132kW/180PS) – I3 (Y1), Removal and Installation).
    Refer to: Cooling Module (303-03B Engine Cooling - 2.0L EcoBoost (177kW/240PS) – MI4, Removal and Installation).
    Refer to: Cooling Module (303-03C Engine Cooling, Removal and Installation).
  1. If equipped.
    Remove the CCM .
    Refer to: Cruise Control Module (CCM) (419-03B Cruise Control - Vehicles With: Adaptive Cruise Control, Removal and Installation).

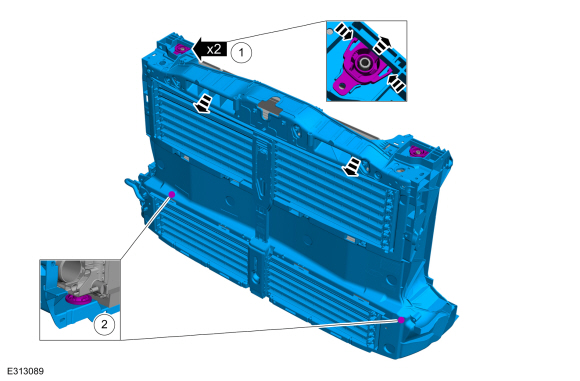

    1. Remove the upper radiator support insulators.
    1. Remove the lower radiator support insulators and seperate the active grille shutter from cooling module.

Installation

  1. To install, reverse the removal procedure.
