Ford Escape 2020-2024 Service Manual / Electrical / Battery and Charging System / High Voltage Battery, Mounting and Cables / Removal and Installation - Battery Energy Control Module (BECM) - Plug-In Hybrid Electric Vehicle (PHEV)

Ford Escape: High Voltage Battery, Mounting and Cables / Removal and Installation - Battery Energy Control Module (BECM) - Plug-In Hybrid Electric Vehicle (PHEV)

Removal

  WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 450 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. NOTE: If installing a new module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new module after installation.

    Upload the BECM configuration to the diagnostic scan tool by following the diagnostic scan tool on-screen instructions.
  1. De-energize the high voltage system.
    Refer to: High Voltage System De-energizing (414-03A High Voltage Battery, Mounting and Cables, General Procedures).
  1. Remove the high voltage battery cover.
    Refer to: High Voltage Battery Cover - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, Removal and Installation).
  1. NOTICE: The BECM electrical connectors must be disconnected in the sequence shown or component damage may occur.

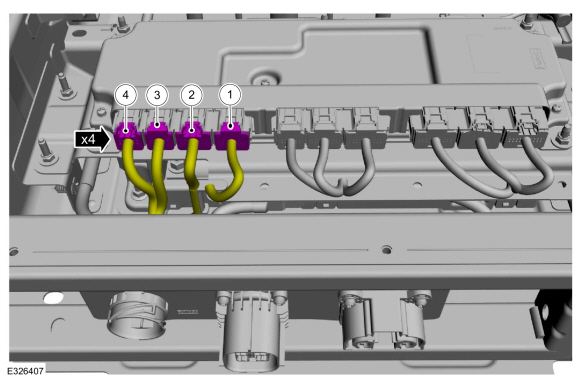

    Disconnect the BECM electrical connectors in the sequence shown.
  1. NOTICE: Wait 10 seconds after disconnecting the BECM electrical connector shown, before disconnecting the remaining electrical connectors or component damage may occur.

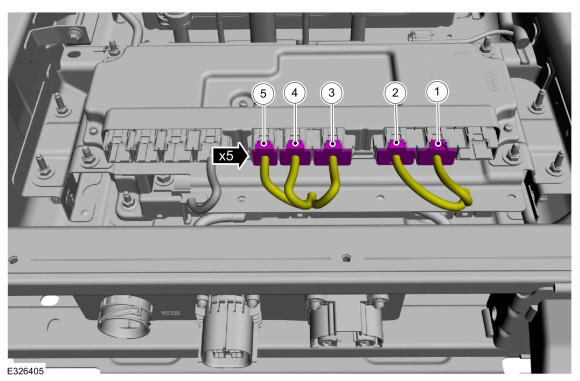

    Disconnect the BECM electrical connector.
  1. NOTICE: The BECM electrical connectors must be disconnected in the sequence shown or component damage may occur.

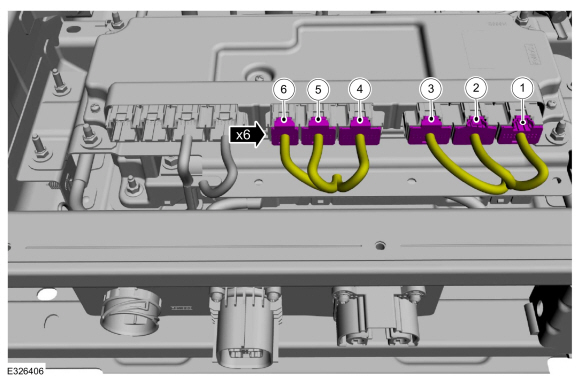

    Disconnect the BECM electrical connectors in the sequence shown.
  1. Detach the retainer from the BECM stud and position aside.
  1. Remove the nuts and the BECM .

Installation

  1. Install the BECM and the nuts.
    Torque: 106 lb.in (12 Nm)
  1. Attach the retainer to the BECM stud.
  1. NOTICE: The BECM electrical connectors must be connected in the sequence shown or component damage may occur.

    Connect the BECM electrical connectors in the sequence shown.
  1. NOTICE: The BECM electrical connectors must be connected in the sequence shown or component damage may occur.

    Connect the BECM electrical connectors in the sequence shown.
  1. NOTE: Do not install the high voltage battery, until the high voltage battery has been leak tested.

    Install the high voltage battery cover.
    Refer to: High Voltage Battery Cover - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, Removal and Installation).
  1. Check the high voltage battery for leaks.
    Refer to: High Voltage Battery Leak Test - Plug-In Hybrid Electric Vehicle (PHEV) (414-03A High Voltage Battery, Mounting and Cables, General Procedures).
  1. Download the BECM configuration information from the diagnostic scan tool to the new BECM following the diagnostic scan tool on-screen instructions.
