Ford Escape: Front End Body Panels / Removal and Installation - Engine Front Undershield
Removal
NOTE:
Removal steps in this procedure may contain installation details.
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting (100-02 Jacking and Lifting)
.
-

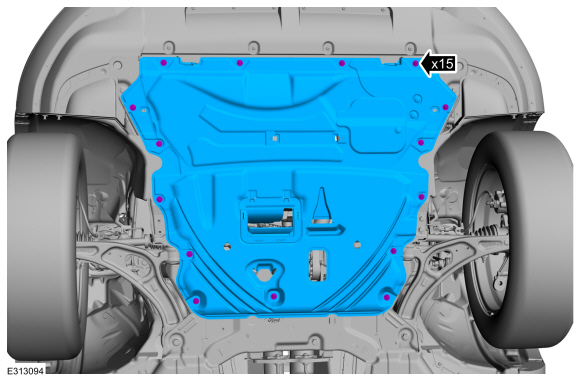

Remove the bolts and the engine front undershield.
Torque:
13 lb.in (1.5 Nm)
Installation
-
To install, reverse the removal procedure.
