Ford Escape: Climate Control System - General Information / Removal and Installation - Heater Core
Removal
-
Remove the climate control housing.
Refer to: Climate Control Housing (412-00 Climate Control System - General Information, Removal and Installation).
-

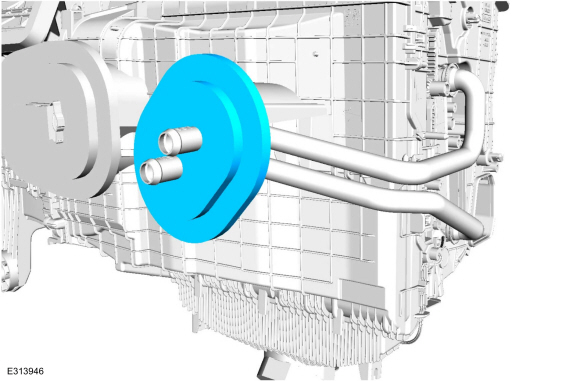

Remove the heater core tube seal.
-

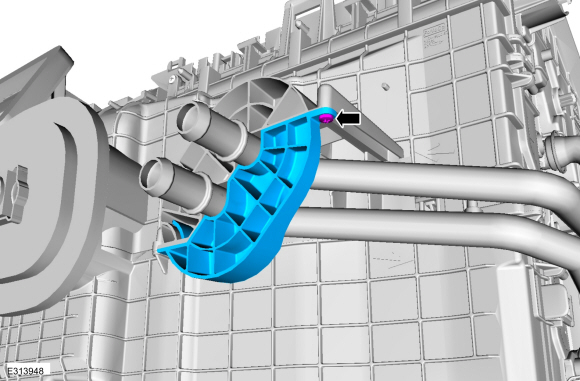

Remove the screw and the heater core support bracket.
-

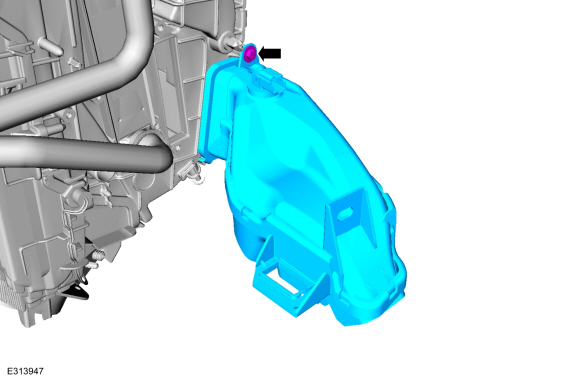

Remove the screw and the LH footwell duct.
-
Remove the heater core from the climate control housing.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
The evaporator temperature sensor is available only as part of the evaporator.
Remove the evaporator.
Refer to: Evaporator (412-00 Climate Control System - General Information, Removal and Installation)...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
If installing a new HVAC module, it is necessary to upload the module
configuration information to the scan tool prior to removing the HVAC
module...
Other information:
System Operation
System Diagram
Item
Description
1
GWM
2
Ambient Air Temperature (AAT) sensor
3
PCM
4
A/C pressure transducer
5
A/C clutch relay
6
A/C compressor clutch field coil
7
HVAC Control Module
8
Air distribution door actuator
9
Temperature door actuator
10
Air inlet door actuator
11..
