Ford Escape 2020-2024 Service Manual / Electrical / Battery and Charging System / High Voltage Battery, Mounting and Cables / Removal and Installation - High Voltage Battery Coolant Cover - Hybrid Electric Vehicle (HEV)

Ford Escape: High Voltage Battery, Mounting and Cables / Removal and Installation - High Voltage Battery Coolant Cover - Hybrid Electric Vehicle (HEV)

Special Tool(s) / General Equipment

Locking Pliers

Removal

  WARNING: To prevent the risk of high-voltage shock, always follow precisely all warnings and service instructions, including instructions to depower the system. The high-voltage system utilizes approximately 450 volts DC, provided through high-voltage cables to its components and modules. The high-voltage cables and wiring are identified by orange harness tape or orange wire covering. All high-voltage components are marked with high-voltage warning labels with a high-voltage symbol. Failure to follow these instructions may result in serious personal injury or death.

  1.   WARNING: Before beginning any service procedure, refer to health and safety warnings in section 100-00 General Information within workshop manual. Failure to follow this instruction may result in serious personal injury.

    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. De-energize the high voltage system.
    Refer to: High Voltage System De-energizing (414-03A High Voltage Battery, Mounting and Cables, General Procedures).

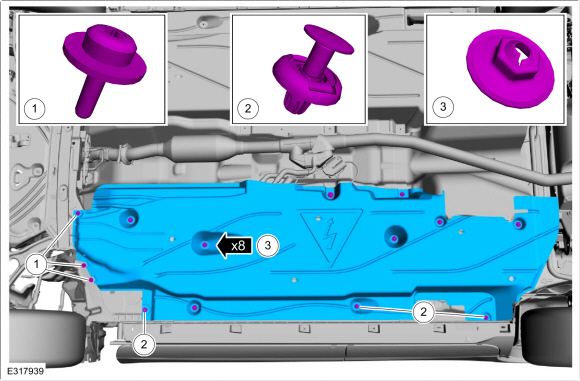

    1. Remove the underbody shield screws.
    1. Remove the underbody shield pushpins.
    1. Remove the nuts and the underbody shield.

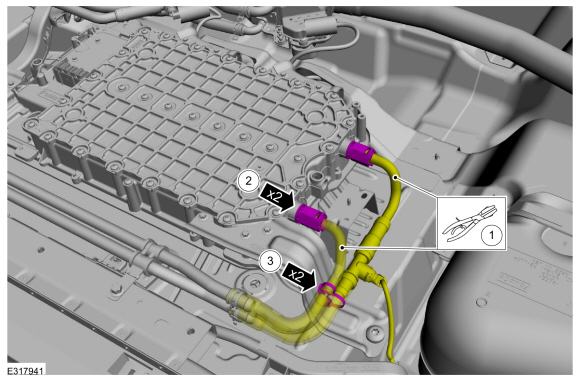

    1. Clamp the high voltage battery coolant hoses.
      Use the General Equipment: Locking Pliers
    1. Disconnect the coolant hoses from the high voltage battery.
    1. Disconnect the retainers from the high voltage battery and position coolant hoses aside.

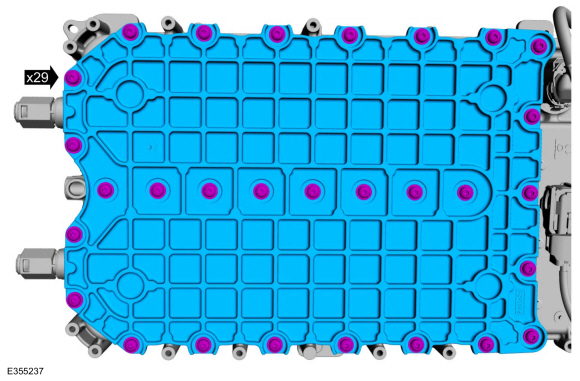

  1. NOTE: Be prepared to collect escaping fluid.

    Remove the bolts and the high voltage battery coolant cover.

Installation

  1. To install, reverse the removal procedure.

NOTE: Inspect the high voltage battery coolant cover seal and replace with a new seal if necessary.

NOTE: This step is only required if replacing the high voltage battery coolant cover seal.

NOTE: Make sure the high voltage battery coolant cover seal is fully seated in the high voltage battery tray groove.

    1. Position the new high voltage battery coolant cover seal and press into the high voltage battery tray in the direction shown.

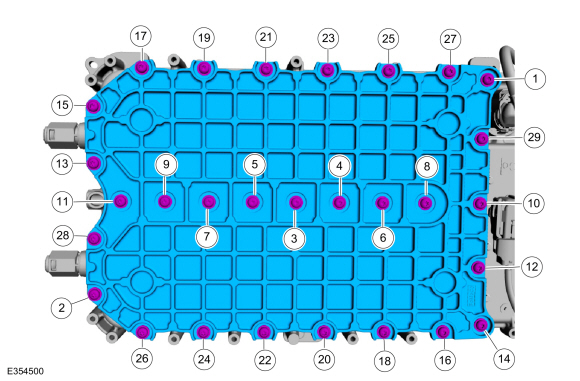

  1. Install the high voltage battery coolant cover. Finger-start the bolts and tighten in the sequence shown.
    Torque:
      Stage 1:  62 lb.in (7 Nm)
      Stage 2:  133 lb.in (15 Nm)
  1. Bleed the cooling system.
    Refer to: Engine Cooling System Draining, Vacuum Filling and Bleeding (303-03C Engine Cooling, General Procedures).
