Ford Escape 2020-2023 Service Manual / Chassis / Steering System / Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Lock Cylinder Housing

Ford Escape: Steering Wheel and Column Electrical Components / Removal and Installation - Ignition Lock Cylinder Housing

Removal

  1. Remove the SCCM .
    Refer to: Steering Column Control Module (SCCM) (211-05 Steering Wheel and Column Electrical Components, Removal and Installation).

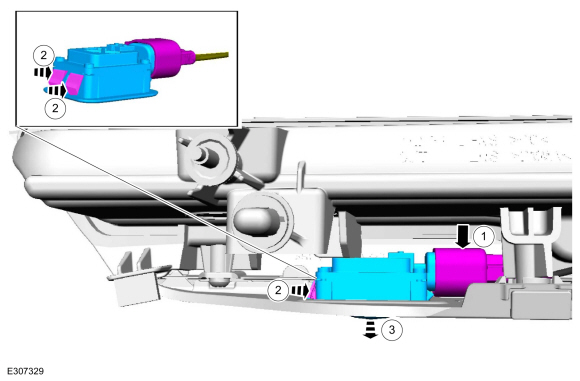

  1. Disconnect the electrical connectors, unclip the retainer and position the harness aside.

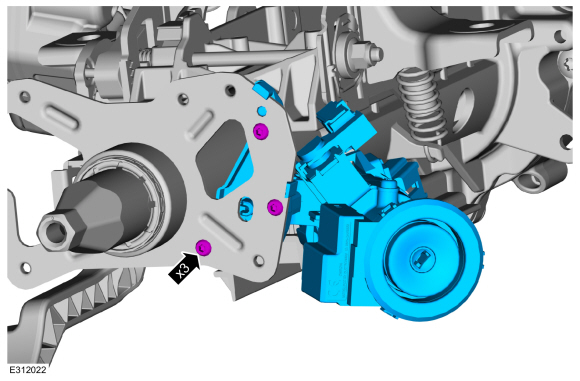

  1. Remove the retainers and the ignition lock cylinder housing.
    Torque: 27 lb.in (3 Nm)
  1. NOTE: This step is only necessary when installing a new component.

    NOTE: For non-functional ignition lock cylinders, replace the ignition lock cylinder.

    Remove the ignition lock cylinder.
    Refer to: Ignition Lock Cylinder (501-14 Handles, Locks, Latches and Entry Systems, Removal and Installation).

Installation

  1. To install, reverse the removal procedure.
