Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Front Door Handle Latch Release Cable Clip
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:

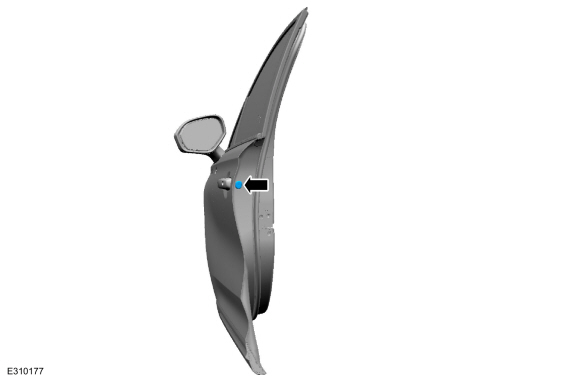

Typical interior front door handle latch release cable clip shown, others similar.
-
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation)
.
-
NOTE:
Make sure to note the routing and attachment points
of the cables to ensure correct operation of the interior front door
handle.
Remove the interior front door handle latch release cable clip.
-
Disconnect the interior front door handle lock indicator cable.
-
Disconnect the interior front door handle cable.
-
Disconnect the interior front door handle cable eyelet.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
Remove the front door trim panel.
Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
Remove the rear trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation)...
