Ford Escape: Handles, Locks, Latches and Entry Systems / Removal and Installation - Interior Rear Door Handle
Removal
NOTE:
LH (left-hand) side shown, RH (right-hand) side similar.
-
Remove the rear trim panel.
Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
Remove the interior rear door trim panel upper finish panel.
-
Remove the interior rear door trim panel upper finish panel screws.
-
Remove the interior rear door trim panel upper finish panel.
-
Remove the interior rear door handle.
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:

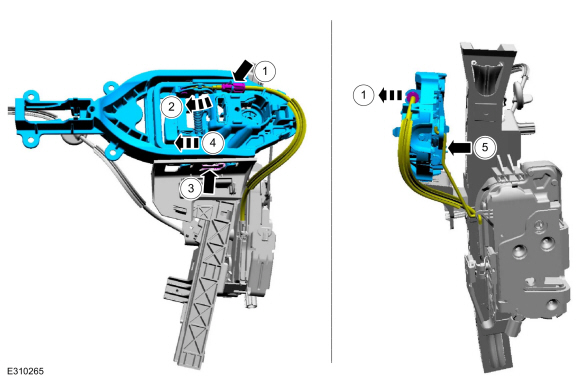

Typical interior front door handle latch release cable clip shown, others similar...
Removal
NOTE:
Left hand (LH) shown, right hand (RH) similar.
NOTE:
Typical interior rear door handle latch release cable clip shown, others similar...
