Ford Escape 2020-2025 Service Manual / Powertrain / Engine / Electronic Engine Controls / Removal and Installation - Knock Sensor (KS)
Ford Escape: Electronic Engine Controls / Removal and Installation - Knock Sensor (KS)
Removal
NOTE: Removal steps in this procedure may contain installation details.
-
Remove the intake manifold.
Refer to: Intake Manifold (303-01C Engine, Removal and Installation).
-

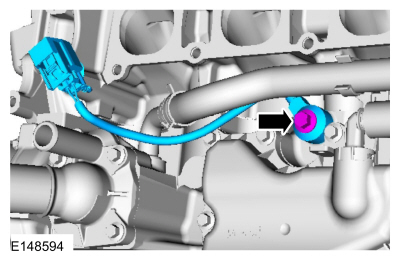

Remove the bolt and the KS .
Torque: 177 lb.in (20 Nm)
.jpg) |
Installation
-
To install, reverse the removal procedure.
