Ford Escape: Exterior Trim and Ornamentation / Removal and Installation - Rear Quarter Panel Moulding
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-

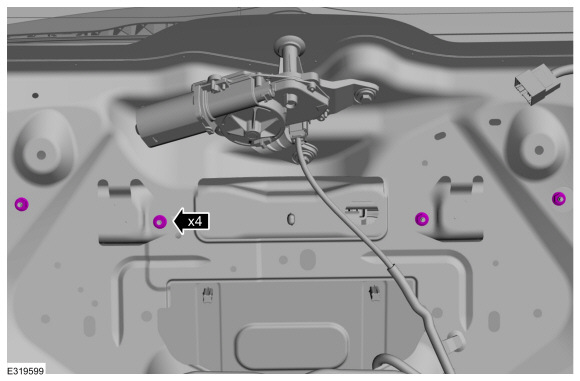

Remove the push pins.
-

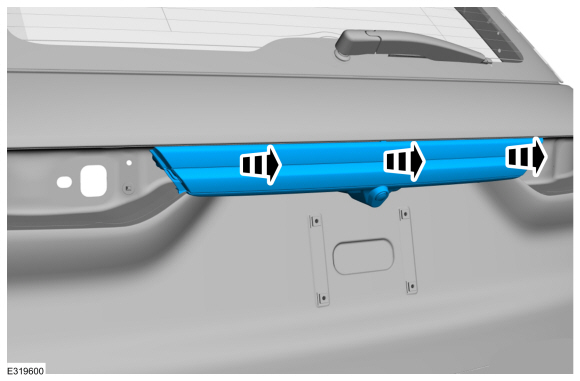

Remove the retainer clips and moulding.
Use the General Equipment: Interior Trim Remover
Installation
-
To install, reverse the removal procedure.
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
Remove the upper belt moulding screw at front of the door...
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
Removal steps in this procedure may contain installation details...
