Ford Escape: Exterior Trim and Ornamentation / Removal and Installation - Rear Spoiler

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

NOTE: Removal steps in this procedure may contain installation details.

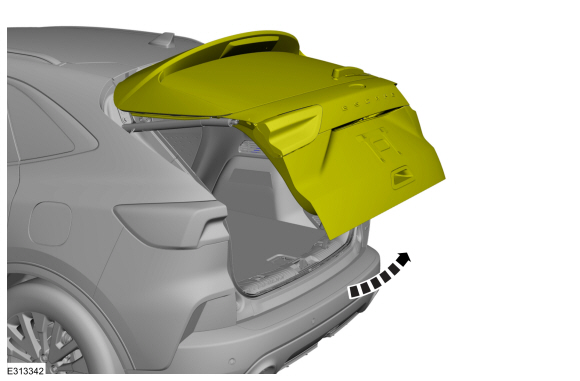

  1. Open the rear tail gate.

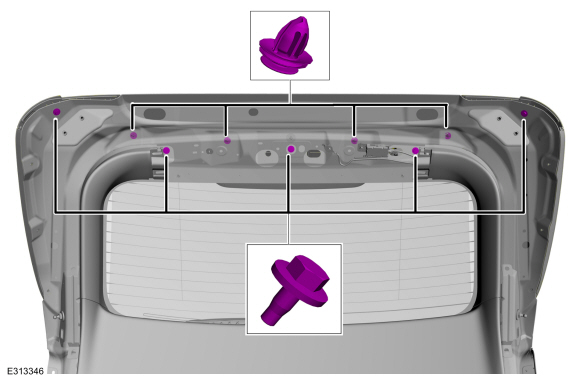

  1. Release the clips and remove the upper liftgate trim panel.
    Use the General Equipment: Interior Trim Remover

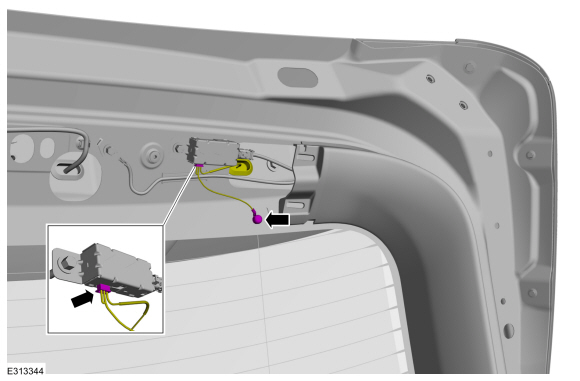

  1. Disconnect the electrical connector and detach the antenna button.
  1. Remove the spoiler to liftgate fasteners.
    Torque: 22 lb.in (2.5 Nm)

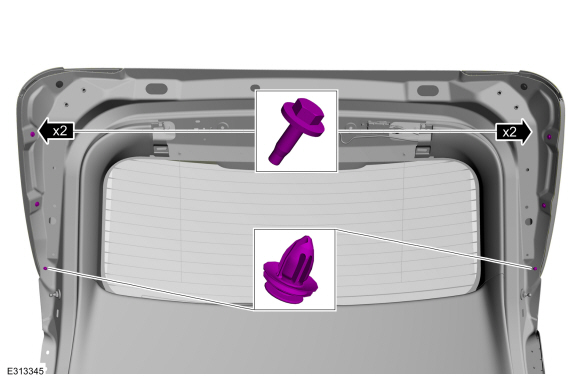

  1. Remove the fasteners.
    Torque: 53 lb.in (6 Nm)

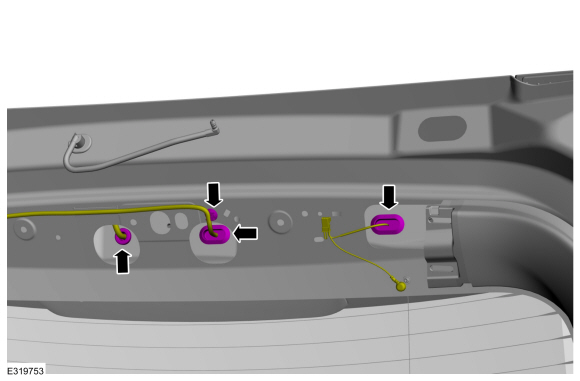

  1. Detach the grommets and harness retainer clip.
    • Remove the spoiler assembly.
    • Disconnect the electrical connector and washer hose.

Installation

  1. NOTE: Make sure to reconnect the washer hose and electrical Connector before re-installing the High Mounted Stoplamp and Spoiler.

    To install, reverse the removal procedure.
