Removal

  1. Remove the front door scuff plates.
    Refer to: Front Scuff Plate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the front seats.
    Refer to: Front Seat (501-10A Front Seats, Removal and Installation).
  1. Remove the floor console.
    Refer to: Floor Console (501-12 Instrument Panel and Console, Removal and Installation).

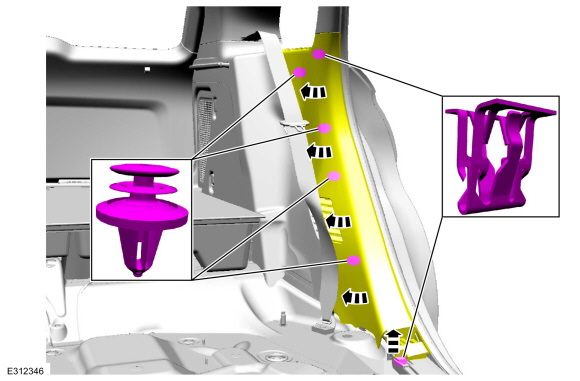

  1. Remove the LH loadspace trim panel.
    Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the seatbelt buckles.
    Refer to: Front Seatbelt Buckle (501-20A Seatbelt Systems, Removal and Installation).

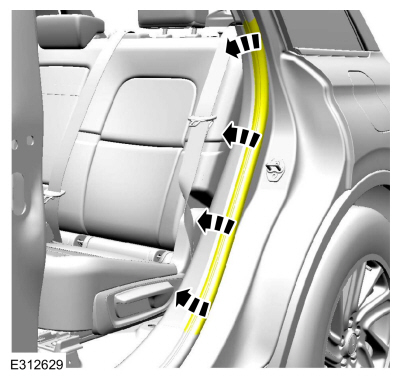

  1. Lower the headliner.
    Refer to: Headliner - Lowering (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Position the floor carpet for access.

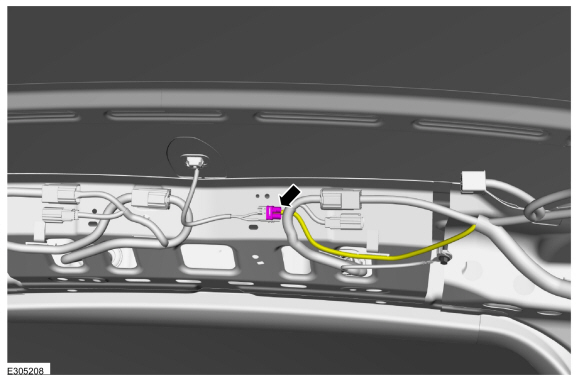

  1. Disconnect the satellite/GPS antenna connector.
  1. Disconnect the satellite/GPS antenna connector.

Installation

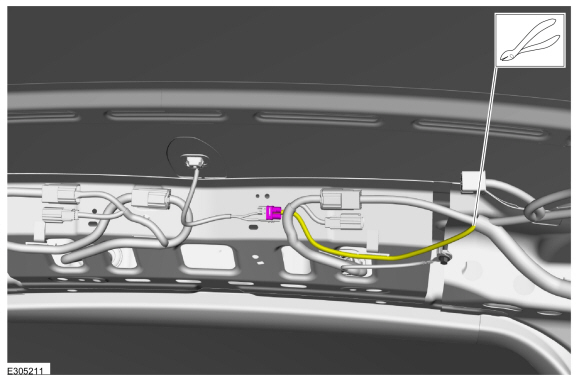

  1. Cut the end off the satellite/GPS antenna cable.

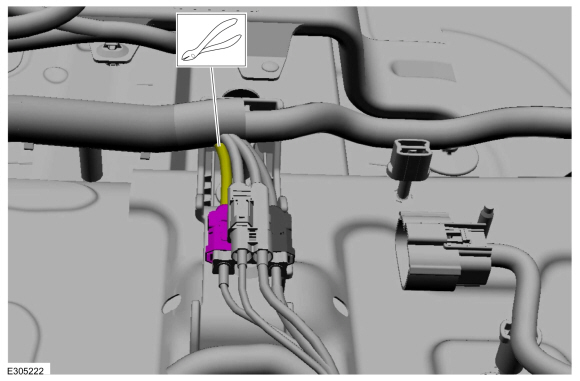

  1. Cut the end off the satellite/GPS antenna connector.

  1. Install the new coaxial cable.

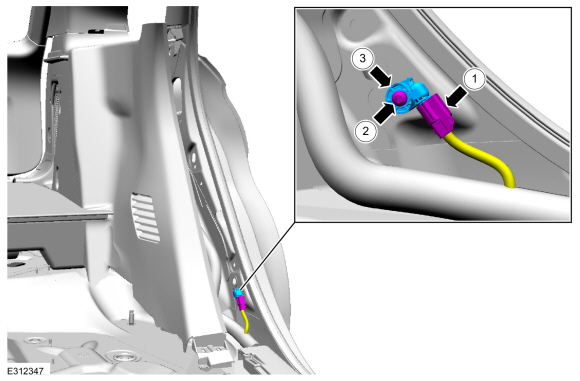

    • Route the new satellite/GPS antenna cable following the routing shown.
    • Secure the new satellite/GPS antenna cable, as necessary, to prevent NVH concerns.
  1. To install, reverse the removal procedure.
