Ford Escape: Steering Wheel and Column Electrical Components / Removal and Installation - Steering Column Multifunction Switch LH

Removal

  1. Remove the steering column shrouds.
    Refer to: Steering Column Shrouds (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. NOTE: Make sure that the component terminals are not bent or damaged.

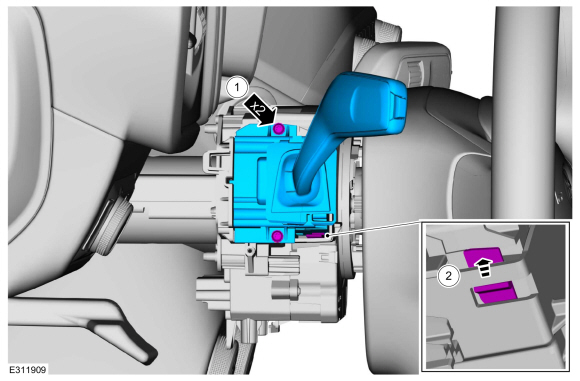

    1. Remove the retainers.
    1. Release the tab and remove the LH steering column multifunction switch.

Installation

  1. To install, reverse the removal procedure.
