Ford Escape: Interior Trim and Ornamentation / Removal and Installation - Steering Column Shrouds
Special Tool(s) /
General Equipment
Flat Headed Screw Driver |
Interior Trim Remover |
Removal
-
Fully extend and lower the steering column.
-

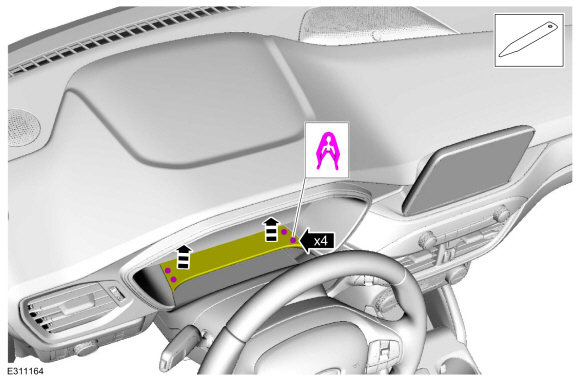

Release the upper gap hider from the IPC and position aside.
Use the General Equipment: Interior Trim Remover
-

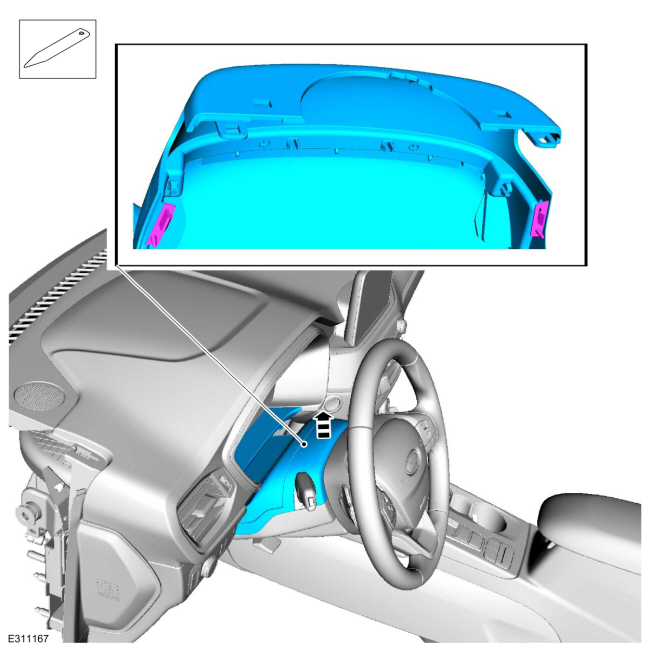

Release the upper steering column shroud front clips.
-
Rotate the steering wheel 90 degrees to the left.
-
Release the LH clip.
Use the General Equipment: Flat Headed Screw Driver
-
Rotate the steering wheel 180 degrees to the right.
-
Release the RH clip.
Use the General Equipment: Flat Headed Screw Driver
-
Release the outer clips on each side and remove the steering column upper shroud.
Use the General Equipment: Interior Trim Remover
-

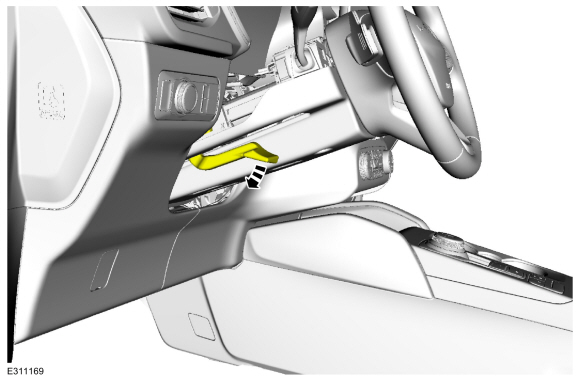

Position the manual steering column adjuster lever in the down position.
-

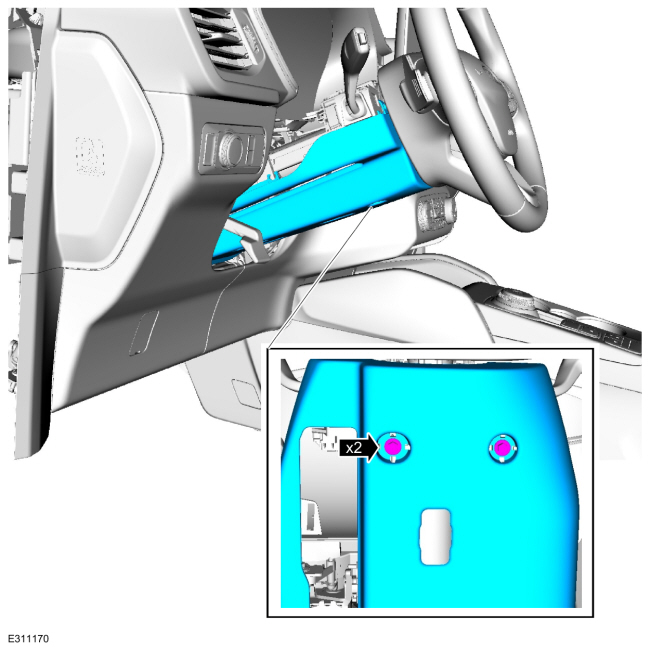

Remove the bolts and the lower steering column shroud.
Installation
-
To install, reverse the removal procedure.
