Ford Escape: Electronic Engine Controls / Removal and Installation - Variable Camshaft Timing (VCT) Oil Control Solenoid

Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. Remove the valve cover.
    Refer to: Valve Cover (303-01C Engine, Removal and Installation).

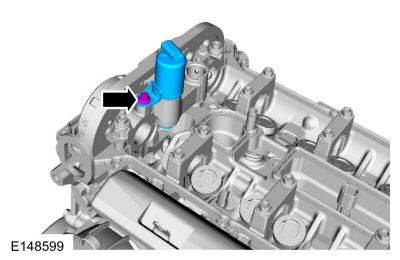

  1. Remove the bolt and the VCT oil control solenoid.
    Torque: 89 lb.in (10 Nm)

Installation

  1. To install, reverse the removal procedure.
