Ford Escape: Electronic Engine Controls / Removal and Installation - Powertrain Control Module (PCM)
Special Tool(s) /
General Equipment
.jpg) |
418-537 Drill Bushing, Powertrain Control Module |
| Ford Diagnostic Equipment |
| 6 mm Drill Bit |
Removal
All vehicles
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
This step is only necessary when installing a new component.
Download the module information to the diagnostic
tool using the Programmable Modules Installation routine.
Refer to: Module Programming (418-01 Module Configuration, General Procedures).
Use the General Equipment: Ford Diagnostic Equipment
-
Remove the LH fender splash shield.
Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

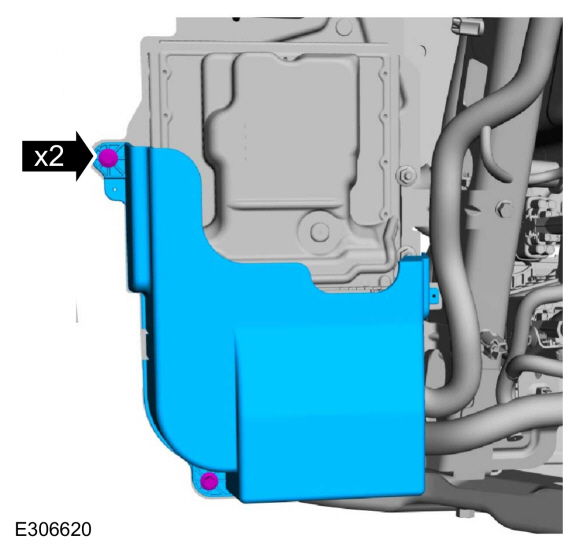

Vehicles without powertrain control module (PCM) security shield
-
Remove the bolts and the PCM cover.

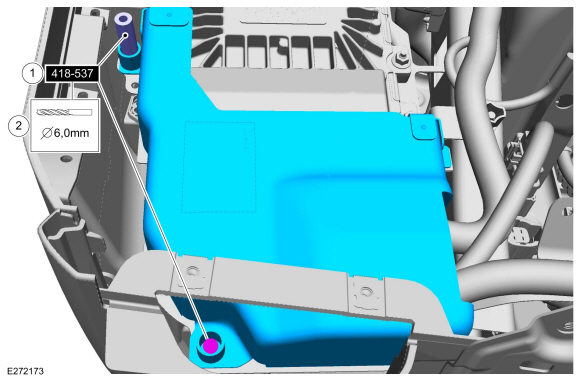

Vehicles with powertrain control module (PCM) security shield
-
Use Suggested Tool: 418-537
Drill Bushing, Powertrain Control Module. Tool shown or a commercially available equivalent can be used.
Use the General Equipment: 6 mm Drill Bit
All vehicles
-

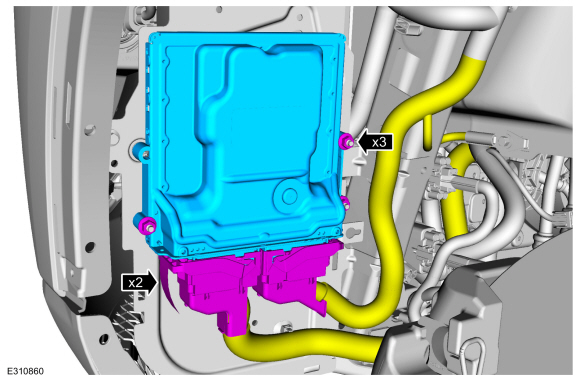

Disconnect the electrical connectors. Remove the retainers and the PCM .
Torque:
89 lb.in (10 Nm)
Installation
-
To install, reverse the removal procedure.
-
NOTE:
This step is only necessary when installing a new component.
Upload the module information from the diagnostic tool using the Programmable Modules Installation routine.
Refer to: Module Configuration - System Operation and Component
Description (418-01 Module Configuration, Description and Operation).
Use the General Equipment: Ford Diagnostic Equipment
-
NOTE:
This step is only necessary when installing a new component.
Reprogram the Passive Anti-Theft System (PATS) .
Refer to: Anti-Theft Key Programming - Scan Tool (419-01B Passive Anti-Theft System (PATS), General Procedures).
-
NOTE:
This step is only necessary when installing a new component.
Using the scan tool, perform the Misfire Monitor Neutral
Profile Correction procedure, following the on-screen instructions.
