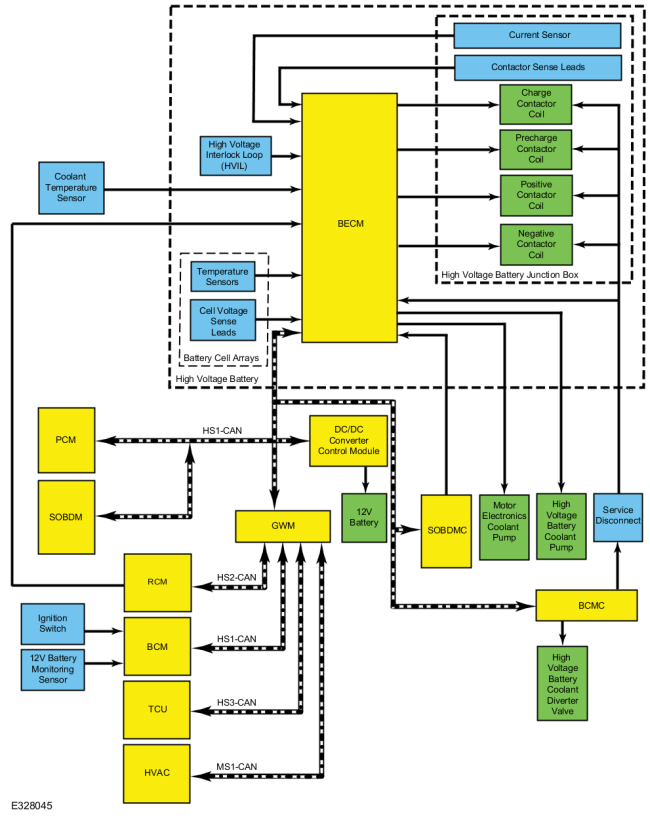

System Diagram
Item | Description |
---|---|
1 | Current Sensor |
2 | Contactor Sense Leads |
3 | BECM |
4 | Precharge Contactor Coil |
5 | Positive Contactor Coil |
6 | Negative Contactor Coil |
7 | High Voltage Battery Junction Box |
8 | Temperature Sensors |
9 | Cell Voltage Sense Leads |
10 | PCM |
11 | Battery Cell Arrays |
12 | GWM |
13 | RCM |
14 | DCDC |
15 | 12 Volt Battery Monitoring Sensor |
16 | TCU |
17 | Ignition Switch |
18 | 12 Volt Battery |
19 | HVAC module |
20 | Service Disconnect |
21 | High Voltage Battery Coolant Diverter Valve |
22 | Motor Electronics Coolant Pump |
23 | Coolant Temperature Sensor |
24 | High Voltage Battery |
25 | BCM |
26 | High Voltage Battery Coolant Pump |
27 | BCMC |
28 | SOBDMC |
29 | High Voltage Interlock Loop (HVIL) |
30 | Charge Contactor Coil |
31 | SOBDM |
System Operation
Network Message Chart - Battery Energy Control Module (BECM)
Broadcast Message | Originating Module | Message Purpose |
12V battery voltage | BCM | Battery voltage measured with battery sensor. |
Accelerator pedal position | PCM | Accelerator pedal position used for OBDII freeze frame data. |
Engine coolant temperature | PCM | Engine coolant temperature used for OBDII freeze frame data. |
Engine load | PCM | Engine calculated load value used for OBDII freeze frame data. |
Engine RPM | PCM | Engine RPM used for OBDII freeze frame data. |
Engine warm-up completion status | PCM | Used to increment counters for DTC aging. |
High voltage battery estimated current flow | SOBDMC | Estimated electric current into or out of the High voltage Battery. |
High Voltage Battery Contactor request | PCM | Command to high voltage battery controller to open, close, or retain the high voltage contactor position. |
High Voltage Battery Contactor supply voltage status | SOBDMC | Used to determine if the 12V contactor supply voltage is asserted or not asserted. |
High Voltage Battery Coolant flow request | SOBDMC | Coolant flow request to support cooling of the SOBDMC . |
High voltage interlock circuit open status | SOBDMC | Notifies the BECM if a high voltage interlock circuit is open which disables the high voltage system. |
Hybrid DC/DC current usage | Direct Current/Direct Current (DC/DC) converter control module | Direct Current/Direct Current (DC/DC) converter control module high voltage current usage for Energy Management (includes all 12V loads). |
Hybrid DC/DC high voltage measurement | Direct Current/Direct Current (DC/DC) converter control module | Voltage of the high voltage bus as seen by the Direct Current/Direct Current (DC/DC) converter control module. |
Hybrid DC/DC coolant flow request | Direct Current/Direct Current (DC/DC) converter control module | Coolant flow request to support cooling of the Direct Current/Direct Current (DC/DC) converter control module. |
Hybrid power limiting ON status | SOBDMC | Used to determine if the Hybrid motor power is being limited. |
Hybrid transaxle inverter voltage | SOBDMC | Voltage on the high voltage cable at the input to the hybrid transaxle. |
HVAC air flow estimated (gateway) | HVAC | Estimated air flow from the HVAC system |
Ignition status | BCM | Current ignition state; off, accessory, run, start, unknown or invalid. |
Power pack torque status | PCM | Power pack is on or off and if torque is available. |
Power mode (gateway) | BCM | Information of current power mode state. |
Restraint impact event status (gateway) | RCM | Used to disable the high voltage system during a crash. |
Transmission selector (PRNDL) status | PCM | Used to determine transaxle gear state. |
Vehicle speed | PCM | Vehicle speed data. |
Odometer master value (gateway) | IPC | Vehicle odometer value. |
Vehicle configuration data | BCM | Vehicle configuration strategy. |
Cell Balancing
Individual cells can deviate over the life of the high voltage battery. The purpose of cell balancing is to equalize the individual cell charges. By balancing the cells the high voltage battery maintains top efficiency. The BECM continuously monitors individual battery cell voltages and will perform balancing when required and when certain conditions are met. The High Voltage Battery SOC (State of Charge) must be equal or greater than 15% with the ignition off. Cell balancing will occur within a maximum duration of 48 hours. The ignition key must be cycled for the balancing to start a new 48 hour cell balancing period. When cell balancing is performed the BECM discharges individual cells with the highest voltage to match the remaining cells.
Vehicle Shut Down
A vehicle shut down signal is sent by the BECM when the BECM is about to open the contactors due to an internal fault or has just opened the contactors due to an external input (external module commanding contactors to be opened such as a crash event or interlock circuit failure). When vehicle shut down occurs, the Stop Safely warning indicator is illuminated warning that the vehicle will be shut down within a matter of seconds and the operator should pull off the road as soon as possible. Depending on the fault condition that lead to the shutdown, the vehicle may or may not restart if the condition has corrected itself. If the fault condition is severe enough, the fault will have to be repaired and Diagnostic Trouble Codes (DTCs) cleared before the vehicle will restart.
Component Description
High Voltage Battery
The high voltage battery consists of cells packaged into modules which deliver approximately 300 volts DC to the high voltage system. The high voltage battery provides cranking power to the high-voltage generator motor inside the Electronically Controlled Continuously Variable Transmission (eCVT). The high voltage battery also supplies electrical energy to the electric motor (internal to the Electronically Controlled Continuously Variable Transmission (eCVT) to move the vehicle when it is operating in electric mode only or to assist the Internal Combustion Engine (ICE) (heavy acceleration). When the Internal Combustion Engine (ICE) is operating or the vehicle is moving, the high-voltage generator motor generates high-voltage AC electricity. High-voltage AC generated by the generator motor is used by the electric motor or converted to high voltage DC by the SOBDMC and transmitted through the high voltage cables to charge the high voltage battery.
The high-voltage DC electrical power is converted to low voltage DC electrical power through the Direct Current/Direct Current (DC/DC) converter control module. This low-voltage high current DC electrical power is then supplied to the 12-volt battery through the low voltage battery cables.
The high-voltage system has a floating ground. The floating ground is designed to completely isolate the high-voltage system from the vehicle chassis. The high-voltage cables are fully insulated (isolated) from all vehicle components and circuits. There are no common connections (such as body grounds) used to conduct the high-voltage power. The BECM monitors this system for any leakage of current to the normal electrical system (similar to a household ground fault interrupter). There are high voltage circuits from the battery cell arrays to the BECM used to monitor high voltage battery pack voltage and voltage leakage to the 12-volt chassis ground.
Battery Energy Control Module (BECM)
The BECM manages the condition of the high voltage battery to control its charging and discharging. The SOBDMC manages the cooling of the high voltage battery by seeking a coolant flow rate signal via HS-CAN to the BECM that directly controls the high voltage battery coolant pump. Coolant flows through the high voltage battery radiator mounted in front of engine radiator. The BCMC controls a coolant diverter valve when additional high voltage battery cooling is needed (high ambient temperatures and/or during high current flow demand) that opens and diverts coolant through a high voltage battery coolant chiller . The high voltage battery chiller is part of the HVAC system to chill the coolant prior to being returned to the high voltage battery.
The BECM monitors the individual cell voltages and temperature sensors internal to the battery arrays. The BECM monitors the battery current using a sensor located in the high voltage battery junction box. This information is needed by the BECM to control the high voltage battery and determine its ability to receive and provide power to the vehicle. The BECM communicates with other vehicle modules on the HS-CAN .
The BECM receives the following hard-wired inputs:
The BECM provides the following outputs:
Direct Current/Direct Current (DC/DC) Converter Control Module
The Direct Current/Direct Current (DC/DC) converter control module
is an liquid-cooled component that converts high voltage DC power to
low-voltage (12 volt) DC power. The converter provides power to the
vehicle 12-volt battery and low-voltage electrical systems. The PCM
requests the Direct Current/Direct Current (DC/DC) converter control
module to enable power conversion through an enable message over HS-CAN .
The PCM sends a charging voltage setpoint request over HS-CAN
to the Direct Current/Direct Current (DC/DC) converter control module.
For information on the Direct Current/Direct Current (DC/DC) converter
control module,
Refer to: Direct Current/Direct Current (DC/DC)
Converter Control Module - System Operation and Component Description
(414-05 Voltage Converter/Inverter, Description and Operation).
Electronically Controlled Continuously Variable Transmission (eCVT)
The Electronically Controlled Continuously Variable Transmission (eCVT) includes an internal generator motor and an internal electric motor.
The Electronically Controlled Continuously Variable Transmission (eCVT) generator motor generates high voltage electricity for charging the high voltage battery and/or providing power to the electric motor. The generator motor is also used to start the gas engine. The generator motor is an internal part of the Electronically Controlled Continuously Variable Transmission (eCVT) and it cannot be repaired, only installed new as an assembly.
The
Electronically Controlled Continuously Variable Transmission (eCVT)
electric motor is used to accelerate the vehicle from a stop when
driving under electric power. The electric motor is also used to recover
energy during regenerative braking. The electric motor receives power
from the high voltage battery and/or from the Electronically Controlled
Continuously Variable Transmission (eCVT) generator motor. The electric
motor is an internal part of the Electronically Controlled Continuously
Variable (eCVT) and it cannot be repaired, only installed new as an
assembly. For information on the Electronically Controlled Continuously
Variable Transmission (eCVT) and its operation,
Refer to:
Transmission Description - System Operation and Component Description
(307-01B Automatic Transmission - Automatic Transmission – HF45,
Description and Operation).
During
braking and deceleration events the regenerative brake system utilizes
the electric motor portion of the hybrid electric powertrain as a
generator to create and capture electrical current. This captured energy
is used to charge the high voltage battery. If the high voltage battery
is adequately charged, the captured energy is used for gas engine
braking to slow the vehicle. The regenerative brake system is a series
system which powertrain braking is used first, up to the limits of the
powertrain torque capacity and battery capacity. After optimum
regeneration is used, the friction brakes are applied to supplement
braking demands. For information on regenerative braking,
Refer to:
Anti-Lock Brake System (ABS) and Stability Control - System Operation
and Component Description (206-09 Anti-Lock Brake System (ABS) and
Stability Control, Description and Operation).
High Voltage Battery Junction Box
The high voltage battery junction box houses the 4 contactors (precharge, main positive, main negative, and auxiliary negative) which, when commanded closed by the BECM , connect the high voltage battery to various components for high-voltage consumption and/or charging of the high voltage battery. During initial power up after the negative contactors (main negative and auxiliary negative) are closed, the precharge contactor closes prior to the positive contactor which routes high voltage through the precharge resistor which is also located in the high voltage battery junction box. This reduces the in rush current to prevent contactor damage. The high voltage battery junction box design distributes high-voltage via six circuits to various high voltage components. The high voltage battery has three high voltage negative outputs and three high voltage positive outputs. Two high voltage high current circuits supplies the positive and negative polarity to the SOBDMC also known as the Inverter System Controller (ISC) and is protected by a high voltage 300A fuse. Two high voltage low current circuits supplies the negative and positive polarity to the DCDC and SOBDM also known as the Battery Charger Control Module (BCCM) and is protected by a high-voltage 40A fuse. Two additional high voltage low current circuits supplies negative and positive polarity to the Cabin Coolant Heater and ACCM and is protected by a second high-voltage 40A fuse. Any fault resulting in excessive current on a low current circuit will open the affected 40A fuse first and stop power distribution to the components on that circuit. Any fault resulting in excessive current on the high current circuit will open the 300A fuse and stop power distribution to the SOBDMC . Note the high voltage fuse current ratings reference the operating current of the circuit and not the faulted current to open the high voltage fuse. The high voltage battery junction box contains the contactors, the current sensor, high-voltage high current 300A fuse, and two high-voltage low current 40A fuses.
The high voltage battery junction box contains a current sensor that is hardwired to and monitored by the BECM . The current sensor helps determine the load or rate of charge of the high voltage battery by sensing current flow into or out of the high voltage battery. The high voltage battery junction box also contains voltage sense points downstream of the high voltage contactors that are used to detect issues with the contactors.
High Voltage Cable Assembly
All cables that carry high voltage are integrated into two high-voltage cable assemblies. The primary high-voltage cable connects the High Voltage Battery, SOBDMC also known as the Inverter System Controller (ISC), DCDC and SOBDM also known as the Battery Charger Control Module (BCCM). Another high voltage cable connects the Cabin Coolant Heater and ACCM to the primary high voltage battery cable. There are 6 circuits that connect to the High Voltage Battery. Two main circuits supply high voltage to the SOBDMC also known as the Inverter System Controller (ISC). Four auxillary supply high voltage to the DCDC , Cabin Coolant Heater, SOBDM and ACCM . The DCDC acts as a pass through and sends high voltage to the SOBDM . The Cabin Coolant Heater acts as a pass through and sends high voltage to the ACCM .
High Voltage System Service Disconnect Plug
The
high voltage system uses a low voltage disconnect plug that opens the
12-Volt contactor control supply circuit and is located in the engine
compartment. When the service disconnect plug is disconnected the high
voltage battery contactors that supply high voltage to the vehicle are
unable to close. The high voltage system must be depowered prior to
disconnecting any high voltage cable (identified by orange color).
Refer to: High Voltage System De-energizing (414-03A High Voltage Battery, Mounting and Cables, General Procedures).
