Overview

The transmission fluid cooling system consists of the following:

  • Transmission fluid cooler tubes
  • Transmission fluid cooler

This vehicle is equipped with an external air cooled transmission fluid cooler. Transmission fluid flows from the transmission through the transmission fluid cooler via the transmission fluid cooler tubes.

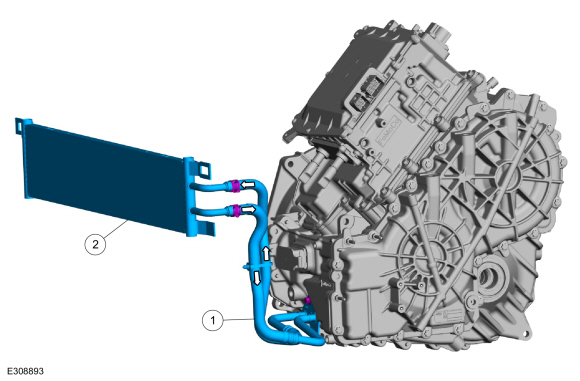

Component Location


Item Description
1 Transmission fluid cooler tubes
2 Transmission fluid cooler
