Ford Escape 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - Automatic Transmission – HF45 / Description and Operation - Transmission Description - Plug-In Hybrid Electric Vehicle (PHEV) - Component Location

Ford Escape: Automatic Transmission - Automatic Transmission – HF45 / Description and Operation - Transmission Description - Plug-In Hybrid Electric Vehicle (PHEV) - Component Location

HF45 Transmission

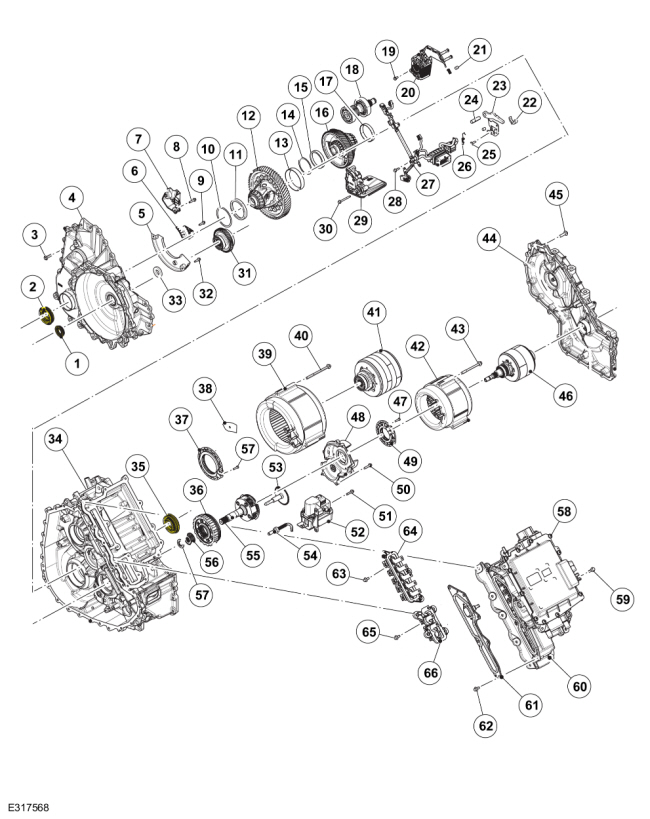

Item Part Number Description
1 70487048 Input shaft oil seal
2 11771177 Right Hand (RH) halfshaft seal
3 ---- Damper housing/cover assembly to transmission case bolts (27 required)
4 79757975 Damper housing
5 7F4097F409 Transmission oil sump baffel
6 7D2887D288 Oil collector plate
7 7D2887D288 Oil collector plate
8 W716607W716607 Oil collector plate bolt (2 required)
9 W716607W716607 Oil collector plate bolt (1 required)
10 7F1197F119 Differential preload shim
11 45274527 Differential bearing cup (damper housing side)
12 7F4657F465 Differential carrier
13 42224222 Differential bearing cup (transmission case side)
14 7H3677H367 Transfer shaft preload shim
15 7J4917J491 Transfer shaft bearing cup (damper housing side)
16 7H4717H471 Transfer gear
17 7J4917J491 Transfer shaft bearing cup (transmission case side)
18 7C0987C098 Traction motor drive gear
19 W500311W500311 INDCT hybrid transmission bolts (2 required)
20 14G36214G362 INDCT hybrid transmission
21 7B3627B362 Dowl pin
22 7G1017G101 Park pawl abutment
23 7A4417A441 Park pawl
24 7D0717D071 Park pawl shaft
25 W500214W500214 Park lock actuator guide bolts (2 required)
26 7D0707D070 Park pawl spring
27 7G2767G276 Wiring bulkhead
28 W500214W500214 Wiring bulkhead bolts (5 required)
29 7R2137R213 Pump and filter assembly
30 W500305W500305 Pump and filter assembly bolts (3 required)
31 7J3227J322 Final drive input gear
32 W716607W716607 Transmission oil sump baffel bolts (2)
33 7L0277L027 Magnet
34 70057005 Transmission case assembly
35 11771177 Left Hand (LH) halfshaft seal
36 7H3757H375 Ring gear assembly
37 7J4657J465 Traction motor resolver
38 7J4817J481 Transmission vent plate
39 7H2997H299 Traction motor
40 W715146W715146 Traction motor bolts (3 required)
41 7P0057P005 Traction motor rotor assembly
42 7J4957J495 Generator/starter
43 W706284W706284 Generator/starter bolts (3 required)
44 72117211 Transmission case end cover assembly
45 ---- Transmission case end cover assembly bolts (24 required)
46 7P0067P006 Generator/starter rotor
47 W505575W505575 Generator/starter resolver bolts (3 required)
48 7A1307A130 Planetary carrier support
49 7J4657J465 Generator/starter resolver
50 W703645W703645 Planetary carrier support bolts (4 required)
51 W500215W500215 Park lock actuator assembly (3 required)
52 7P2367P236 Park lock actuator assembly
53 7H0747H074 Pump drive gear
54 7D4107D410 Park pawl actuator rod
55 7A3987A398 Planetary carrier
56 7A3487A348 Sun gear
57 7D2347D234 Sun gear thrust bearing
58 7B0127B012 ISC
59 W718675W718675 ISC bolts (11 required)
60 W714629W714629 ISC studbolts (2 required)
61 7P2347P234 ISC side cover
62 W720550W720550 ISC side cover bolts (6 required)
63 W500211W500211 High voltage terminal bolts (5 required)
64 7P1027P102 High voltage terminals
65 W500211W500211 High voltage terminal bolts (3 required)
66 7P1027P102 High voltage terminals

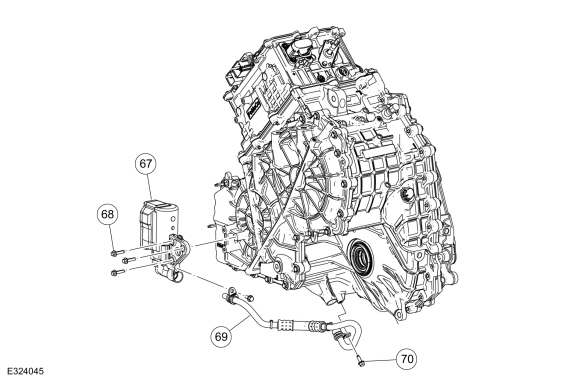

67 7P0867P086 Transmission fluid auxiliary pump
68 W500215W500215 Transmission fluid auxiliary pump bolts (3 required)
69 7A0317A031 Transmission fluid auxiliary pump inlet tube
70 W716188W716188 Transmission fluid auxiliary pump inlet tube bolts (2 required)


Item Part Number Description
1 7H2997H299 Traction motor
2 7J4957J495 Generator/starter
3 7P1027P102 High voltage terminals
4 7A3987A398 Planetary carrier
5 7P2367P236 Park rod actuator
6 7H1417H141 Transmission fluid temperature (TFT) sensor
7 7R2137R213 Pump and filter assembly
8 7F4657F465 Differential carrier

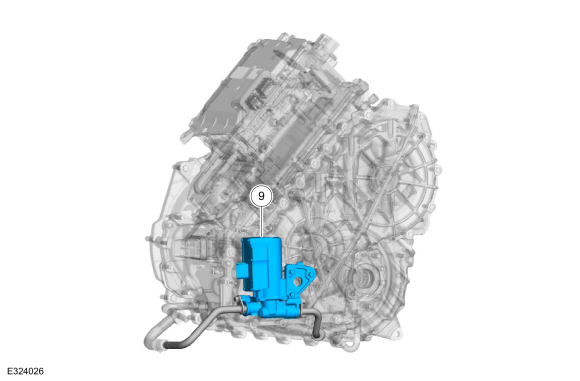

9 7P0867P086 Transmission fluid auxiliary pump

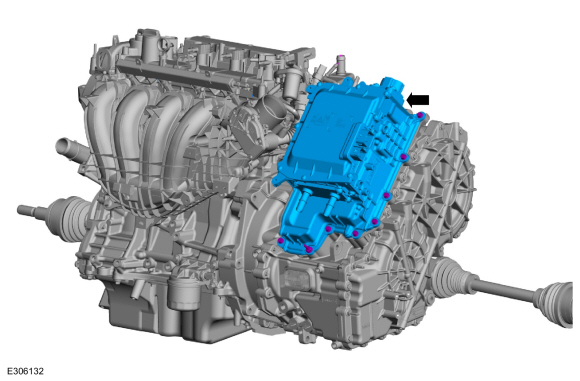

ISC (Inverter System Controller)

The ISC (inverter system controller) is also referred to as the SOBDMC . The ISC is a DC to AC inverter that supplies current to the electric motor and generator/starter and converts AC from the motor and generator/starter to DC to charge the high voltage batteries.

    Description and Operation - Transmission Description - Overview

    T..

    Description and Operation - Transmission Description - System Operation and Component Description

    System Diagram E357528 *.sttxt { visibility: hidden; } *...
