Ford Escape 2020-2024 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - Automatic Transmission – HF45 / Disassembly and Assembly of Subassemblies - Transmission High Voltage Terminals

Ford Escape: Automatic Transmission - Automatic Transmission – HF45 / Disassembly and Assembly of Subassemblies - Transmission High Voltage Terminals

DISASSEMBLY

  1. Disconnect the high voltage inductor.

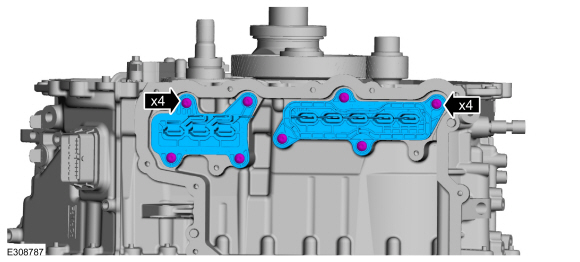

  1. Remove the bolts and the high voltage inductor.
  1. Remove the high voltage bolts.

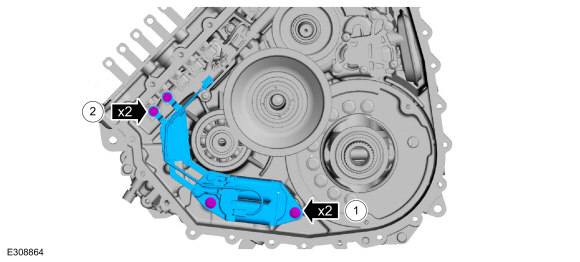

  1. Remove the bolts and the high voltage terminals.

ASSEMBLY

  1. Install the high voltage terminals and the bolts.
    Torque: 97 lb.in (11 Nm)
  1. Install the high voltage terminal bolts.
    Torque: 89 lb.in (10 Nm)

  1. Install the high voltage inductor and the bolts.
    1. Torque: 18 lb.ft (25 Nm)
    1. Torque: 89 lb.in (10 Nm)
  1. Connect the high voltage inductor.
