Ford Escape 2020-2023 Service Manual / Powertrain / Automatic Transmission / Automatic Transmission - Automatic Transmission – HF45 / Disassembly and Assembly of Subassemblies - Transmission Fluid Pump and Filter Assembly

Ford Escape: Automatic Transmission - Automatic Transmission – HF45 / Disassembly and Assembly of Subassemblies - Transmission Fluid Pump and Filter Assembly

Materials

Name Specification
Motorcraft® MERCON® ULV Automatic Transmission Fluid
XT-12-QULV
WSS-M2C949-A,
MERCON® ULV


DISASSEMBLY

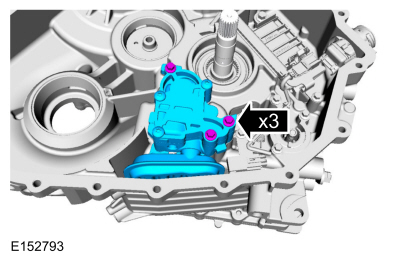

  1. Remove the bolts and the pump assembly.
  1. Remove the bolt and the filter assembly.

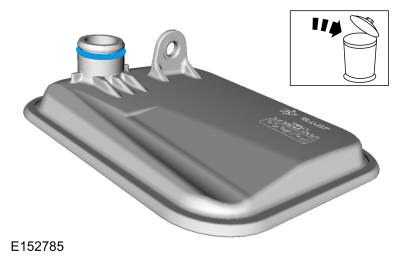

  1. Remove and discard the seal.

ASSEMBLY

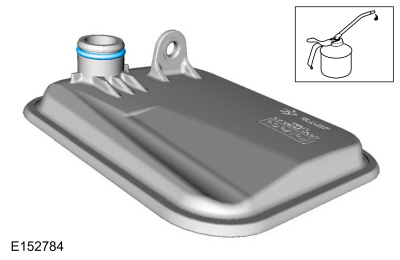

  1. Lubricate the seal with transmission fluid and install the seal.
    Material: Motorcraft® MERCON® ULV Automatic Transmission Fluid / XT-12-QULV (WSS-M2C949-A, ) (MERCON® ULV)

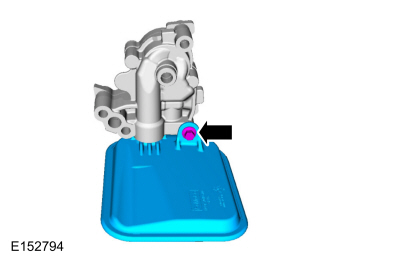

  1. Install the filter assembly and the bolt.
    Torque: 97 lb.in (11 Nm)
  1. Install the pump assembly and the bolts.
    Torque: 97 lb.in (11 Nm)
