Ford Escape: Body Closures / Removal and Installation - Front Door

Special Tool(s) / General Equipment

Door Lift

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH shown, RH similar.

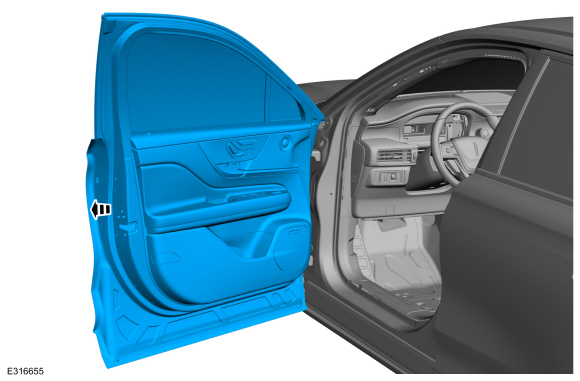

Open the door.

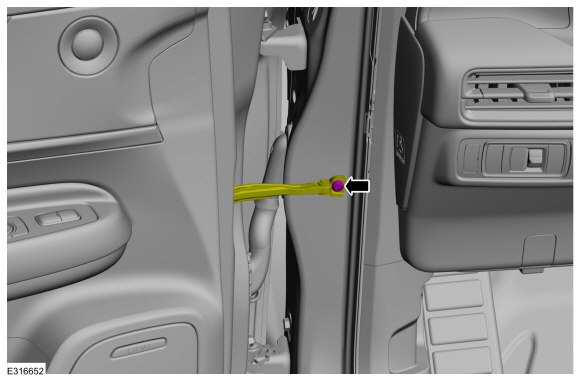

Remove the check arm bolt.
Torque: 18 lb.ft (25 Nm)

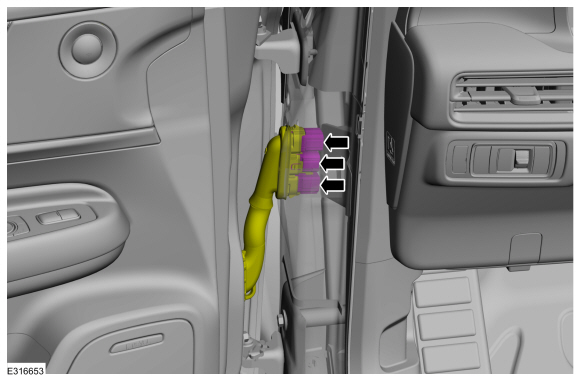

Disconnect the door electrical connectors.

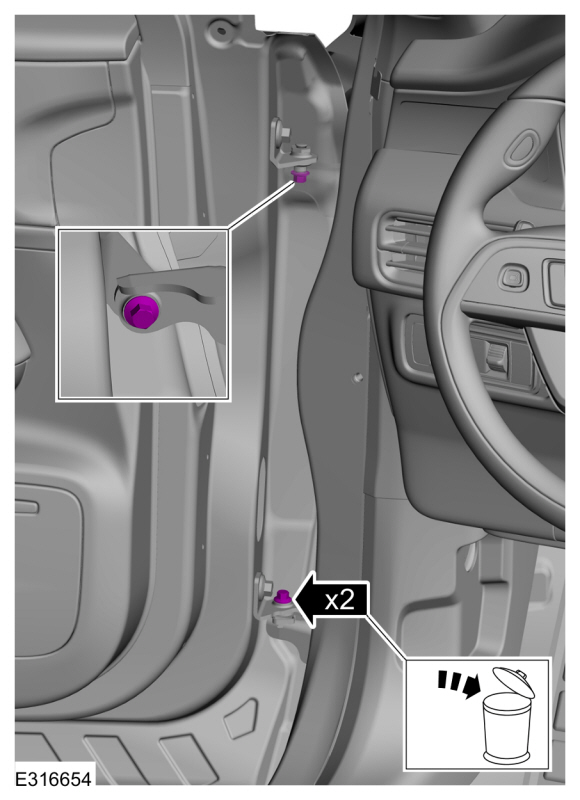

Remove the bolts.
Use the General Equipment: Door Lift
Torque: 22 lb.ft (30 Nm)

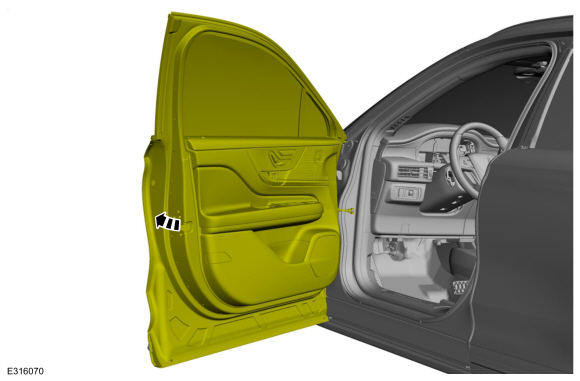

Remove the door.

Installation

To install, reverse the removal procedure.

NOTE: This step is only necessary when installing a new component.
Check the alignment and correct if necessary.
Refer to: Front Door Alignment (501-03 Body Closures, General Procedures).
