Ford Escape: Body Closures / Removal and Installation - Front Door Check Arm

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

  1. Open the door.
  1. Remove the check arm bolt.
    Torque: 18 lb.ft (25 Nm)
  1. Remove the front door trim panel.
    Refer to: Front Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the front door speaker.
    Refer to: Front Door Speaker (415-00 Information and Entertainment System - General Information, Removal and Installation).
  1. Remove the front door check arm cover.

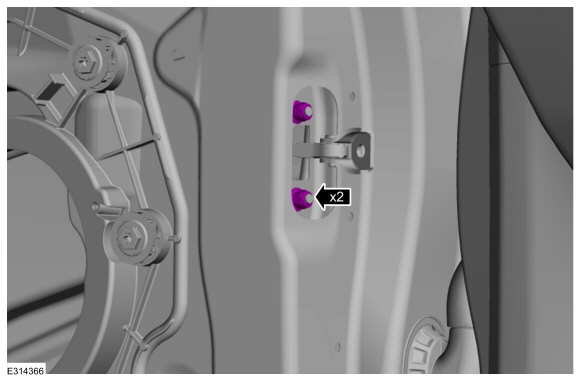

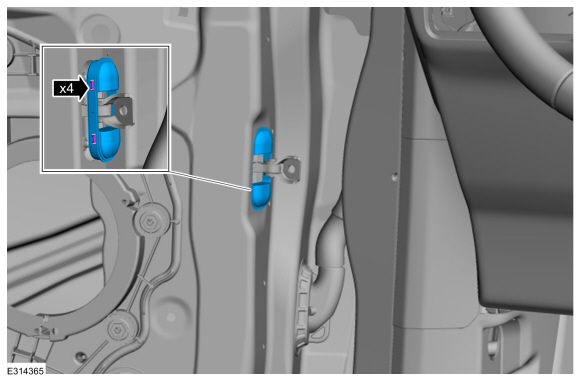

  1. Remove the front door check arm nuts.
    Torque: 80 lb.in (9 Nm)

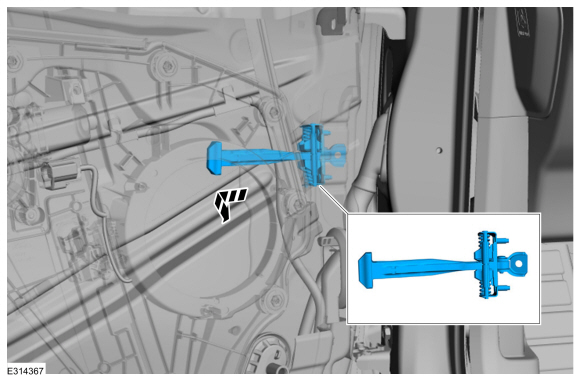

  1. Remove the front door check arm assembly.

Installation

  1. To install, reverse the removal procedure.
