Ford Escape: Fuel Tank and Lines / Removal and Installation - Fuel Lines
Removal
WARNING:
Do not smoke, carry lighted tobacco or have an open flame of
any type when working on or near any fuel-related component. Highly
flammable mixtures may be present and may be ignited. Failure to follow
these instructions may result in serious personal injury.
NOTE:
Removal steps in this procedure may contain installation steps.
-
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety
Precautions (100-00 General Information, Description and Operation).
-
Release the fuel system pressure.
Refer to: Fuel System Pressure Release (310-00C Fuel System - General Information, General Procedures).
-
Disconnect the battery.
Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
-
With the vehicle in NEUTRAL, position it on a hoist.
Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
-
Remove the high voltage battery.
Refer to: High Voltage Battery - Plug-In Hybrid Electric Vehicle (PHEV)
(414-03A High Voltage Battery, Mounting and Cables, Removal and
Installation).
-
NOTE:
Always wrap the fuel line connection with a towel before disconnecting it.

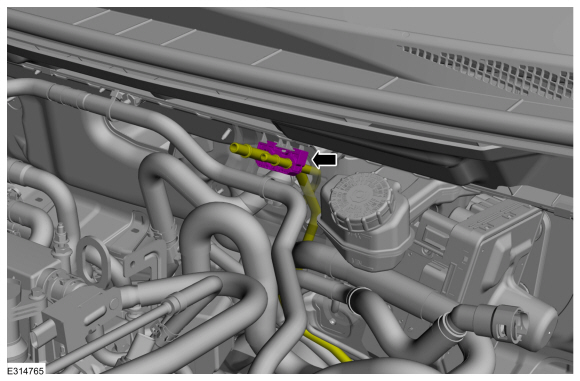

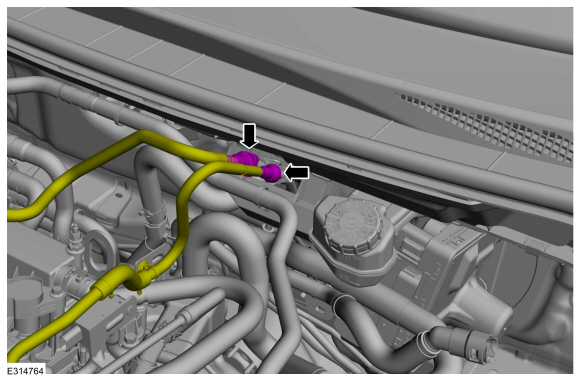

Disconnect the quick connectors.
Refer to: Quick Release Coupling (310-00B Fuel System - General
Information - 2.0L EcoBoost (177kW/240PS) – MI4, General Procedures).
Refer to: Spring Lock Couplings (310-00B Fuel System - General
Information - 2.0L EcoBoost (177kW/240PS) – MI4, General Procedures).
-
Detach the retainer clip.
-
-

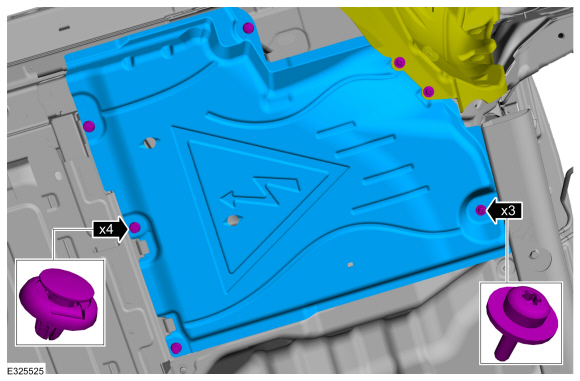

Remove the screws and position the RH wheel arch liner aside.
Torque:
22 lb.in (2.5 Nm)
-
Remove the RH air deflector.
-
-

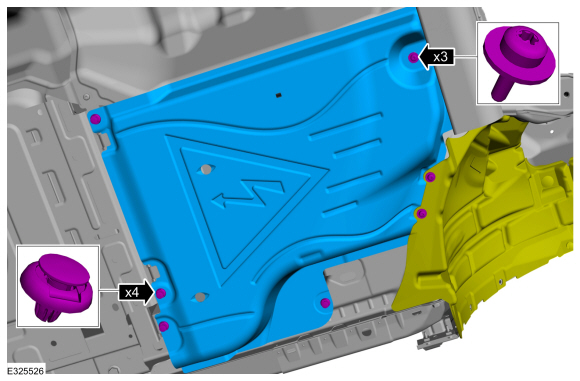

Remove the screws and position the LH wheel arch liner aside.
Torque:
22 lb.in (2.5 Nm)
-
Remove the LH air deflector.
-

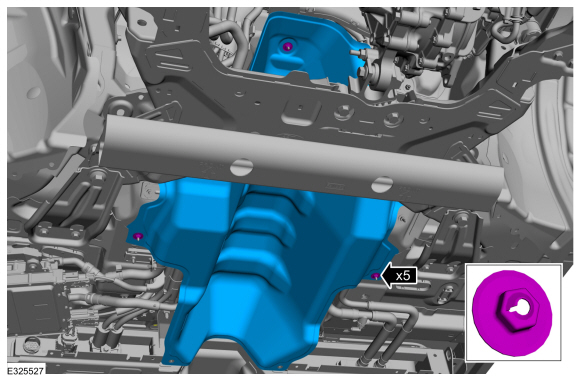

Remove the nuts and heat shield.
Torque:
22 lb.in (2.5 Nm)
-
-

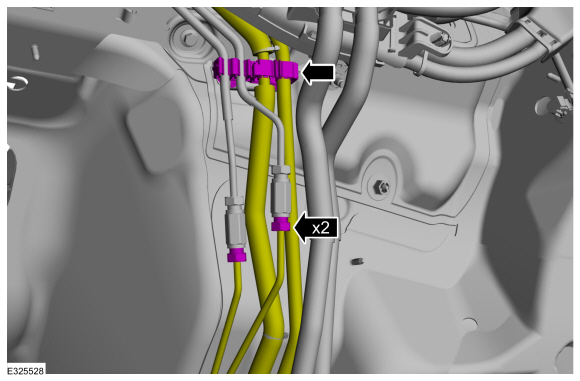

Disconnect the front brake lines and detach the retainer clip.
Torque:
150 lb.in (17 Nm)
-

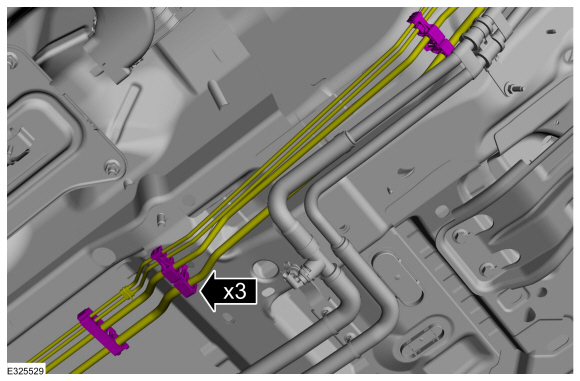

Detach the retainer clips.
-
NOTE:
Always wrap the fuel line connection with a towel before disconnecting it.
-
Remove the quick connectors.
Refer to: Quick Release Coupling (310-00B Fuel System - General
Information - 2.0L EcoBoost (177kW/240PS) – MI4, General Procedures).
-

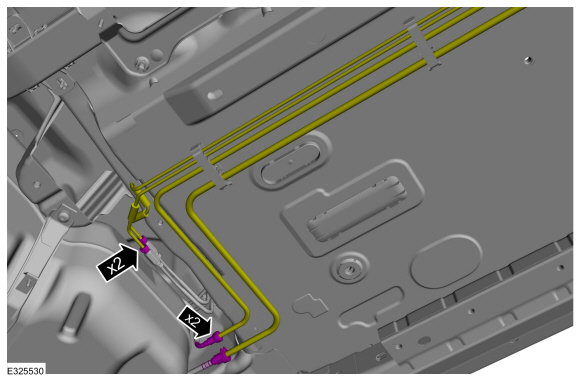

Disconnect the rear brake lines retainers.
Torque:
150 lb.in (17 Nm)
-

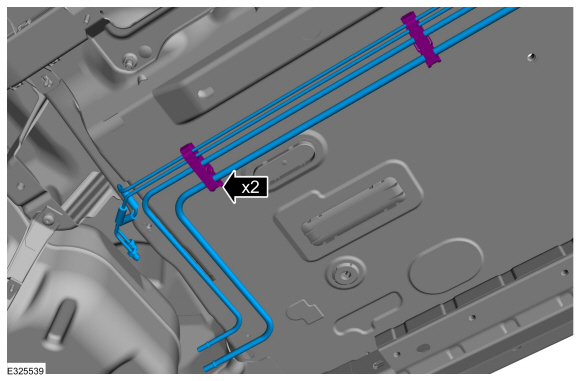

Detach the fuel tube retainers and remove the fuel lines.
Installation
-
To install, reverse the removal procedure.
-
Bleed the brake system.
Refer to: Brake System Pressure Bleeding - Vehicles With: Electric
Brake Booster (206-00 Brake System - General Information, General
Procedures).
Refer to: Brake System Pressure Bleeding - Vehicles With: Vacuum Brake
Booster (206-00 Brake System - General Information, General Procedures).
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the fuel pump sender unit.
Disconnect the electrical connector...
