Ford Escape 2020-2024 Service Manual / Powertrain / Engine / Evaporative Emissions / Removal and Installation - Fuel Tank Pressure Sensor and Tube - Plug-In Hybrid Electric Vehicle (PHEV)

Ford Escape: Evaporative Emissions / Removal and Installation - Fuel Tank Pressure Sensor and Tube - Plug-In Hybrid Electric Vehicle (PHEV)

Removal

  WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Do not carry personal electronic devices such as cell phones, pagers or audio equipment of any type when working on or near any fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

  WARNING: Always disconnect the battery ground cable at the battery when working on an evaporative emission (EVAP) system or fuel-related component. Highly flammable mixtures may be present and may be ignited. Failure to follow these instructions may result in serious personal injury.

NOTE: Removal steps in this procedure may contain installation steps.

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting - Overview (100-02 Jacking and Lifting, Description and Operation).
  1. Disconnect the battery.
    Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

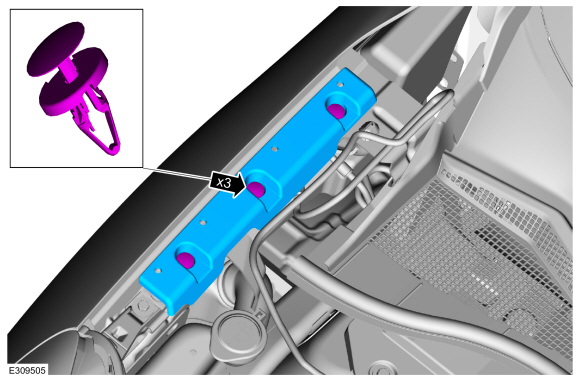

    • Detach the retainers.
    • Disconnect the electrical connector.
    • Disconnect the quick release couplings and remove the fuel tank pressure sensor and tube.
      Refer to: Quick Release Coupling (310-00C Fuel System - General Information, General Procedures).

Installation

  1. To install, reverse the removal procedure.
