Ford Escape: Body Closures / Removal and Installation - Liftgate Strut
Special Tool(s) /
General Equipment
Removal
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH side shown, RH side similar.
-
NOTICE:
Support the liftgate before removing the power
liftgate motor. Failure to follow this direction may result in damage to
the components.

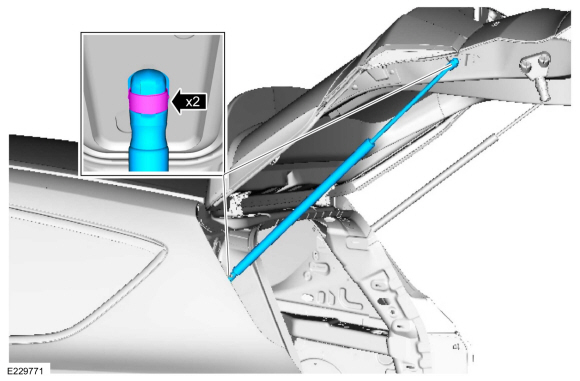

Using a pick hook separate the clip and remove the power liftgate motor.
Use the General Equipment: Pick Hook
Installation
-
To install, reverse the removal procedure.
Removal
Remove the liftgate trim panel.
Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
On both sides...
Special Tool(s) /
General Equipment
Pick Hook
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the LH C-pillar trim panel...
