Ford Escape: Information and Entertainment System - General Information / Removal and Installation - Low Voltage Differential Signalling (LVDS) Cable

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The original equipment LVDS cable is part of the wiring harness and cannot be removed. This procedure refers to replacement of the cable only by overlaying the cable.

  1. Remove the APIM .
    Refer to: SYNC Module [APIM] (415-00 Information and Entertainment System - General Information, Removal and Installation).

Installation

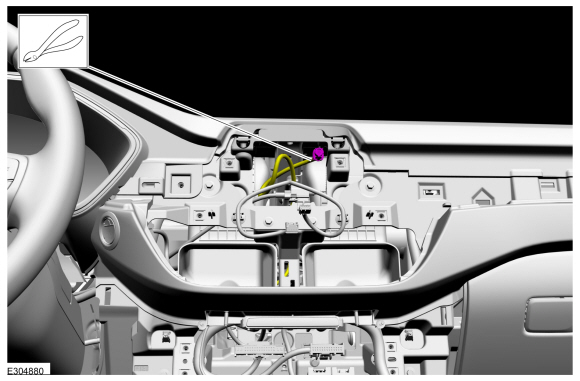

  1. Cut the connector off the existing LVDS cable.

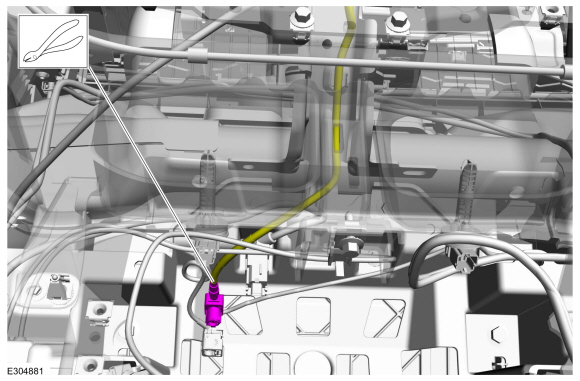

  1. Cut the connector off the existing LVDS cable.

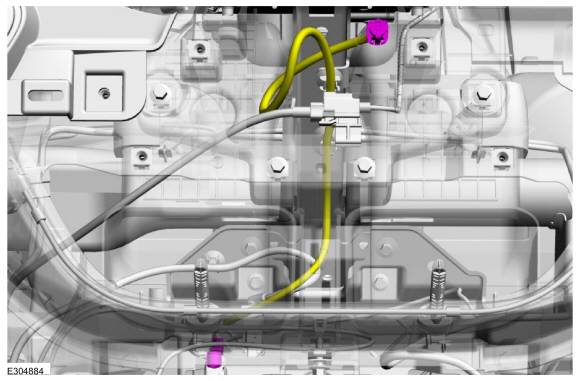

  1. Route the new LVDS cable following the routing shown.
    • Secure the new LVDS cable, as necessary, to prevent NVH concerns.
  1. To install, reverse the removal procedure.
