Ford Escape: Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System / Removal and Installation - Passive Anti-Theft System (PATS) Center Antenna

Removal

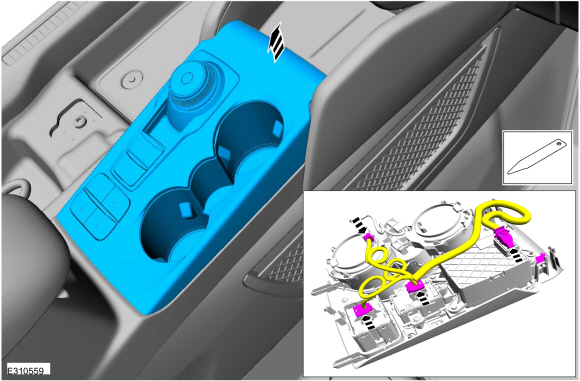

  1. Release the clips and remove the floor console upper rear trim panel.
    • Disconnect the electrical connectors.

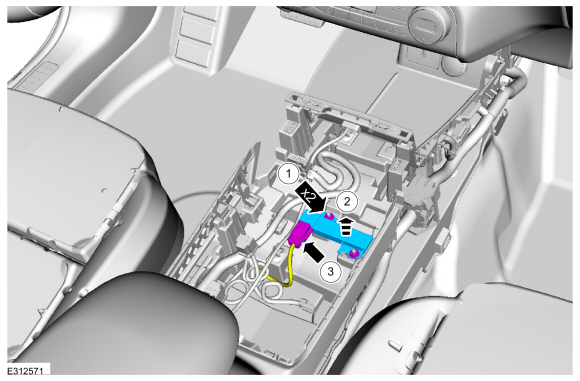

  1. Remove the PATS center antenna.
    1. Remove the nuts.
    1. Lift upward on the PATS center antenna.
    1. Disconnect the electrical connector.

Installation

  1. To install, reverse the removal procedure.
