Ford Escape: Passive Anti-Theft System (PATS) - Vehicles With: Keyless Vehicle System / Removal and Installation - Passive Anti-Theft System (PATS) Front Antenna

Special Tool(s) / General Equipment

Interior Trim Remover

Removal

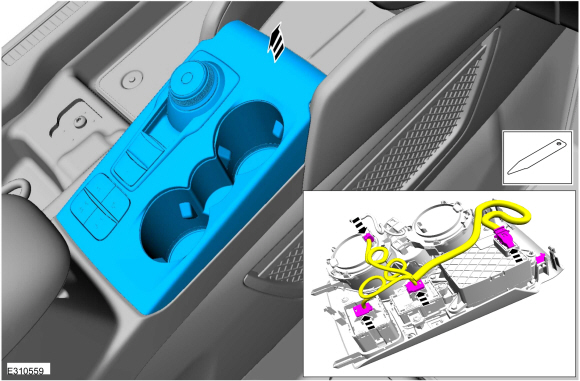

  1. Release the clips, disconnect the electrical connectors and remove the floor console upper rear trim panel.
    Use the General Equipment: Interior Trim Remover

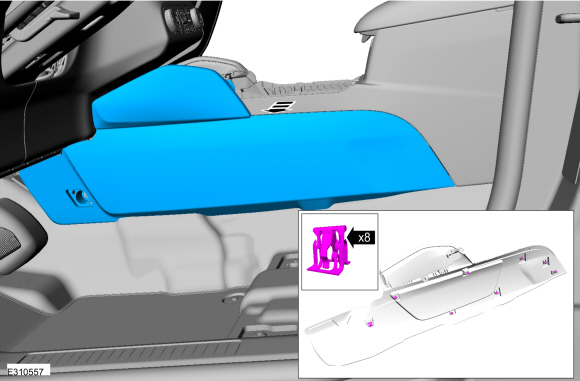

  1. On RH side.
    Release the clips and remove the floor console side trim panel.
    Use the General Equipment: Interior Trim Remover
  1. On LH side.
    Remove the floor console side trim panel bolt.
    1. Remove the cover.
    1. Remove the bolt.

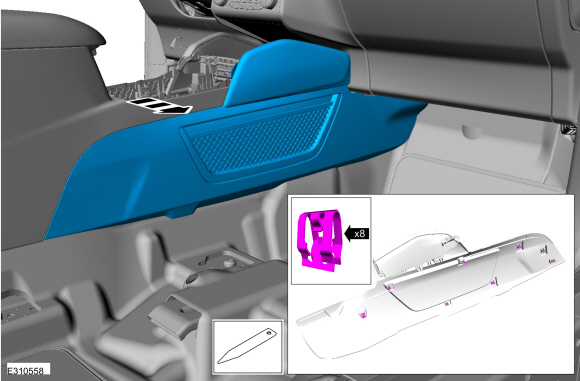

  1. Release the clips and remove the LH floor console side trim panel.
    Use the General Equipment: Interior Trim Remover

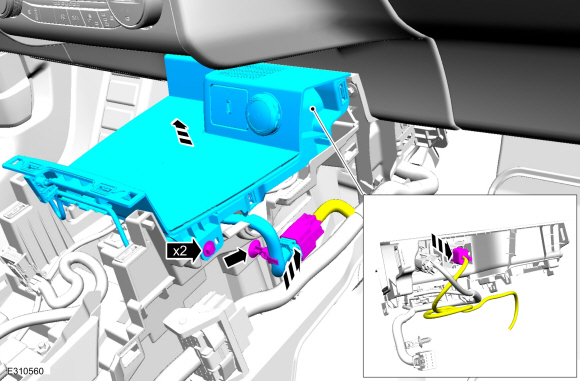

  1. Remove the bolts, release the clips, disconnect the electrical connectors and remove the floor console upper front trim panel.

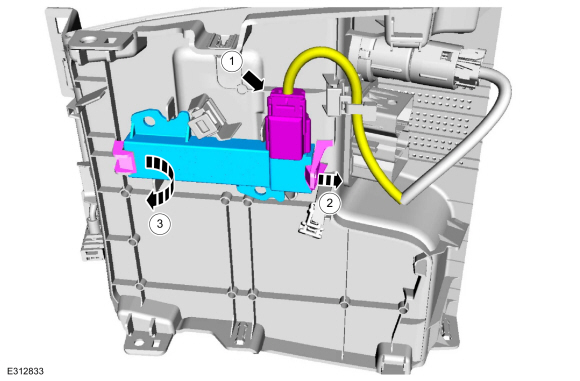

  1. Remove the PATS front antenna.
    1. Disconnect the electrical connector.
    1. Release the tab.
    1. Remove the PATS front antenna.

Installation

  1. To install, reverse the removal procedure.

    Removal and Installation - Passive Anti-Theft System (PATS) Center Antenna

    Removal Release the clips and remove the floor console upper rear trim panel. Disconnect the electrical connectors. Remove the PATS center antenna...
