Ford Escape: Wipers and Washers / Removal and Installation - Rain Sensor
Materials
Name |
Specification |
Motorcraft® Ultra-Clear Spray Glass Cleaner ZC-23 |
ESR-M14P5-A
|
Removal
-
Remove the interior rear view mirror.
Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).
-

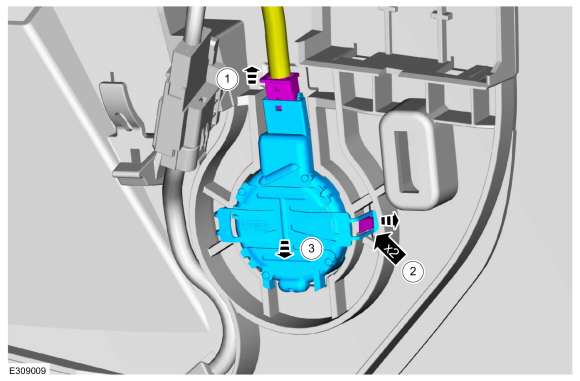

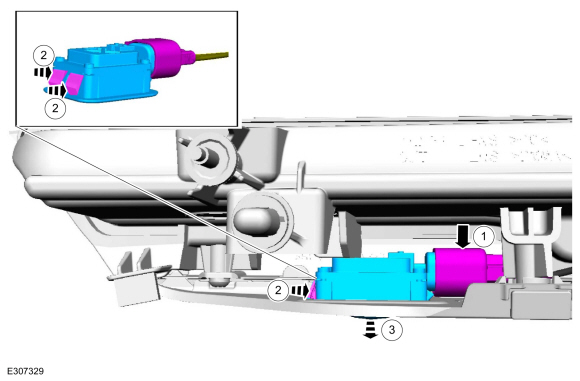

Remove the rain sensor.
-
Disconnect the electrical connector and position aside
-
On both sides.

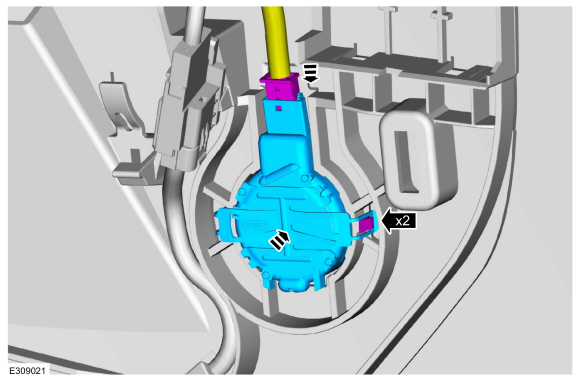

Release the retainers.
-
Remove the rain sensor.
Installation
-

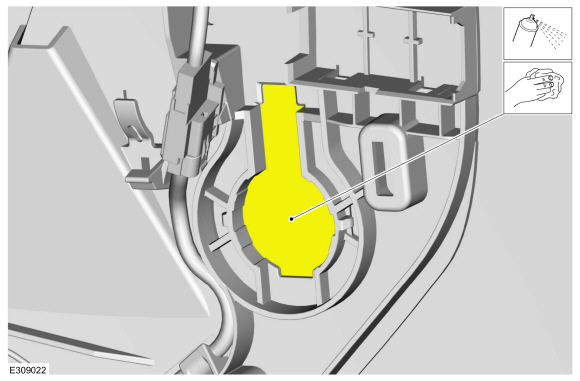

Clean the windshield glass area of foreign materials.
Material: Motorcraft® Ultra-Clear Spray Glass Cleaner
/ ZC-23
(ESR-M14P5-A)
-
NOTE:
If the rain sensor gel pack is damaged, install a new rain sensor.
Inspect the rain sensor gel pack for damage.
-
Install the rain sensor and connect the electrical connector.
-
Install the interior rear view mirror.
Refer to: Interior Rear View Mirror (501-09 Rear View Mirrors, Removal and Installation).
Repair
NOTE:
This procedure may be carried out on rubber hoses only. If a
plastic washer hose is damaged, a new washer hose must be installed.
Locate and verify the damaged washer hose...
Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the rear window wiper pivot arm.
Refer to: Rear Window Wiper Pivot Arm (501-16 Wipers and Washers, Removal and Installation)...
