Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: LH side shown, RH side similar.

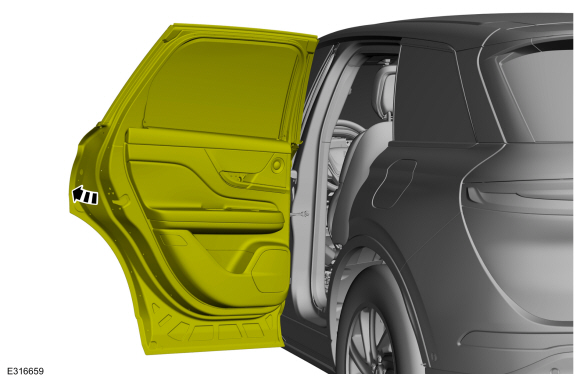

  1. Open the rear door.

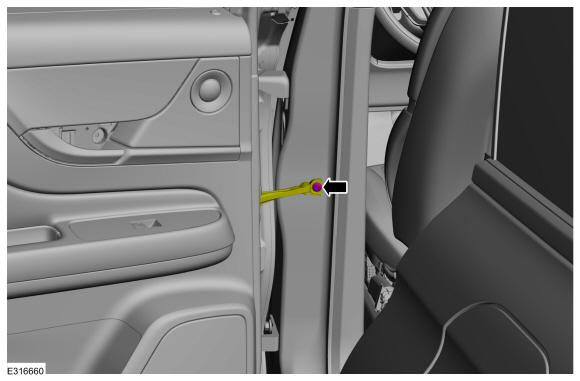

  1. Remove the rear door check arm bolt.
    Torque: 18 lb.ft (25 Nm)
  1. Remove the rear door trim panel.
    Refer to: Rear Door Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the rear door speaker.
    Refer to: Rear Door Speaker (415-00 Information and Entertainment System - General Information, Removal and Installation).

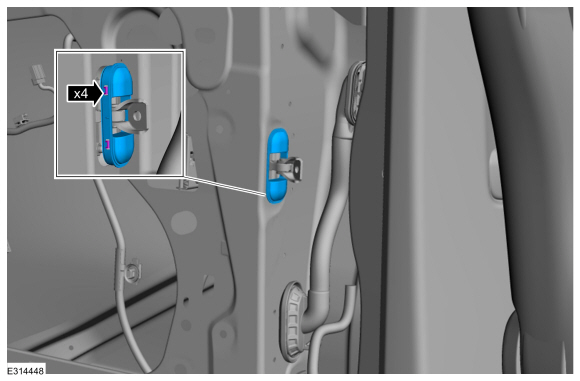

  1. Remove the rear door check arm cover.
  1. Remove the rear door check arm nuts.
    Torque: 80 lb.in (9 Nm)

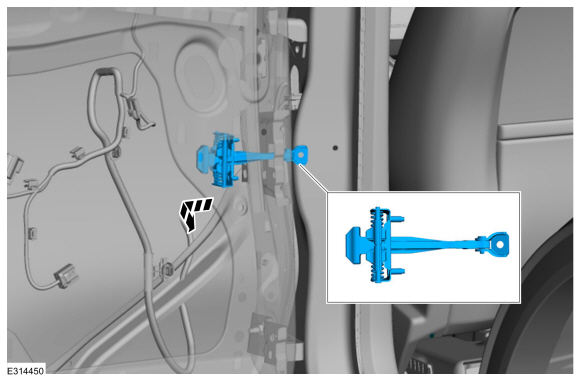

  1. Remove the rear door check arm assembly

Installation

  1. To install, reverse the removal procedure.
