Ford Escape: Interior Trim and Ornamentation / Removal and Installation - C-Pillar Trim Panel
Special Tool(s) /
General Equipment
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
NOTE:
Removal steps in this procedure may contain installation details.
-
Remove the loadspace trim panel.
Refer to: Loadspace Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
-
Remove the rear seatbelt retractor and pretensioner anchor bolt and position the seatbelt aside.
Torque:
30 lb.ft (40 Nm)
-
NOTE:
Seats removed for clarity.

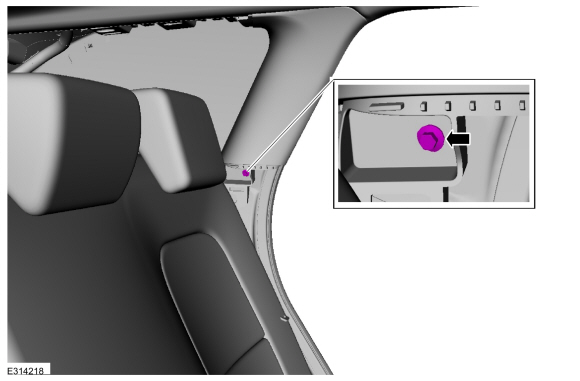

Remove the C-pillar trim panel bolt.
Torque:
22 lb.in (2.5 Nm)
-

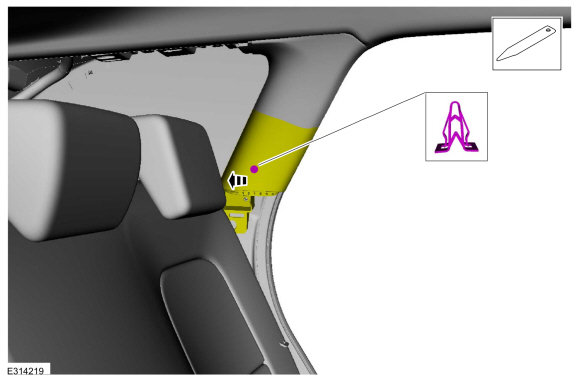

Release the C-pillar trim panel lower clips.
Use the General Equipment: Interior Trim Remover
-
NOTICE:
The C-pillar trim panel must be positioned downward
to allow the upper clips to release correctly. Failure to follow this
direction may cause damage to the C-pillar trim panel.

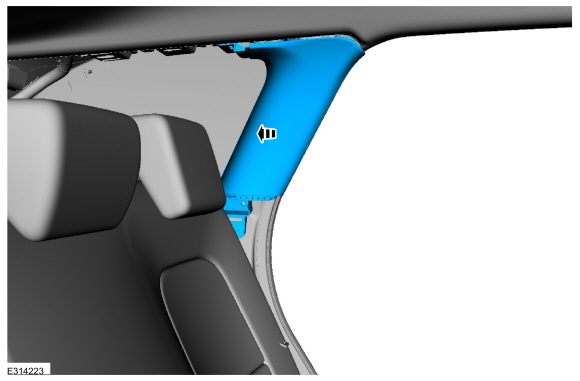

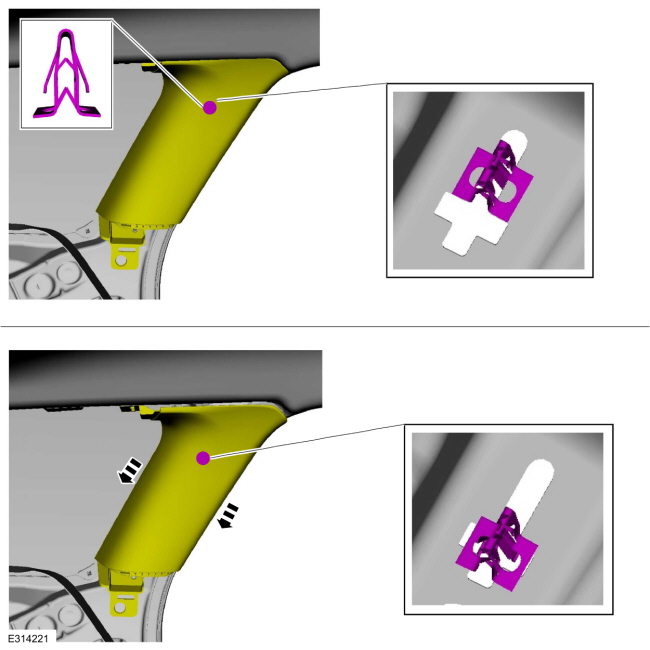

Slide the C-pillar trim panel down, aligning the clips to the slots in the sheet metal.
-

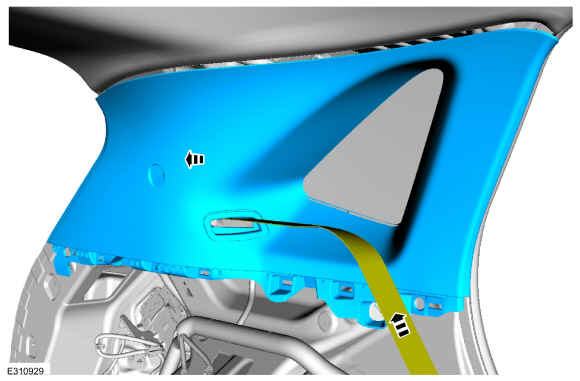

Remove the C-pillar trim panel while feeding the rear seatbelt retractor and pretensioner through the opening.
Installation
-
NOTE:
During installation, make sure the seatbelt webbing
is not twisted and the seatbelts and buckles are accessible to the
occupants.
To install, reverse the removal procedure.
-

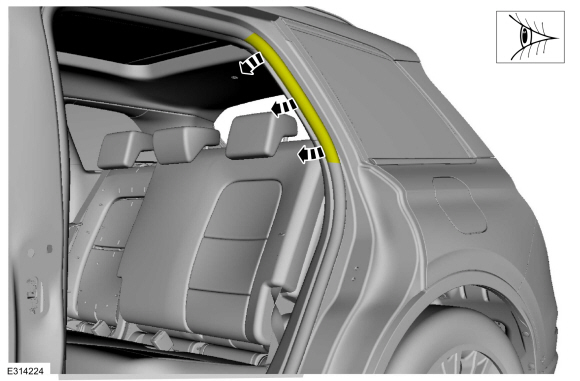

Inspect and position the rear door weather strip lip so that it overlaps the top of the C-pillar trim panel.
-
Check the active restraint system for correct operation.
Refer to: Seatbelt System Functional Tests (501-20A Seatbelt Systems, General Procedures).
Special Tool(s) /
General Equipment
Interior Trim Remover
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
Upper and lower B-pillar trim panels
Remove the front scuff plate trim panel...
Special Tool(s) /
General Equipment
Pick Hook
Interior Trim Remover
Removal
NOTE:
LH (left hand) shown, RH (right hand) similar.
NOTE:
Removal steps in this procedure may contain installation details...
