Ford Escape: Climate Control System - General Information / Removal and Installation - Driver Side Register

Removal

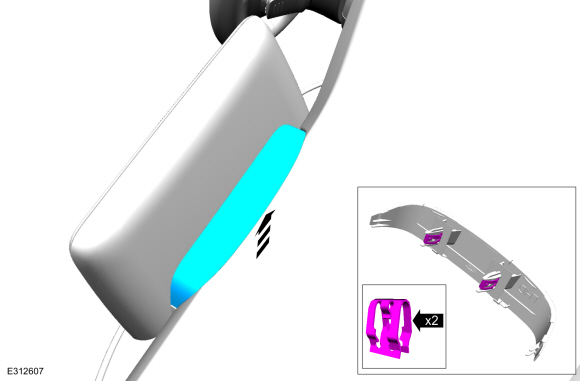

  1. Release the clips and remove the trim panel.

  1. Remove the bolts and the display unit.
    • Disconnect the electrical connector.
      Torque: 22 lb.in (2.5 Nm)

  1. Remove the bolts, release the clips and remove the center instrument panel trim panel.
    • Disconnect the electrical connector.
      Torque: 22 lb.in (2.5 Nm)
  1. Remove the steering column gap hider.
  1. Remove the bolts, release the clips and remove the IPC trim bezel.
    Torque: 22 lb.in (2.5 Nm)
  1. Release the tabs and remove the driver side register.

Installation

  1. To install, reverse the removal procedure.
