Ford Escape 2020-2024 Service Manual / Body and Paint / Body and Paint / Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Lower Sensor

Ford Escape: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Lower Sensor

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02) .

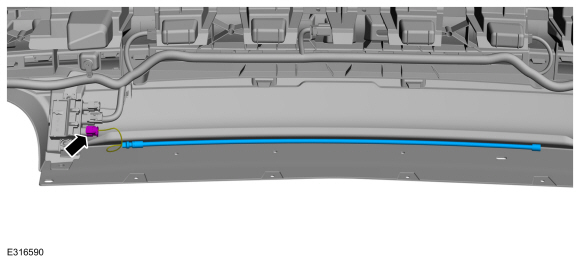

  1. Disconnect the hands-free liftgate actuation lower sensor electrical connector.

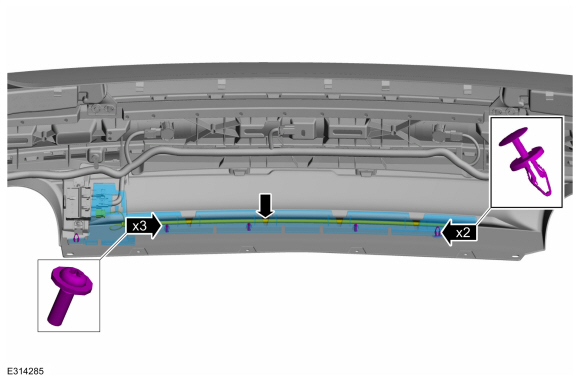

  1. Remove the push pins, the brackets and the lower hands-free liftgate sensor.

Installation

  1. To install, reverse the removal procedure.
