Ford Escape: Body Closures / Removal and Installation - Hands-Free Liftgate Actuation Upper Sensor

Removal

  1. With the vehicle in NEUTRAL, position it on a hoist.
    Refer to: Jacking and Lifting (100-02) .

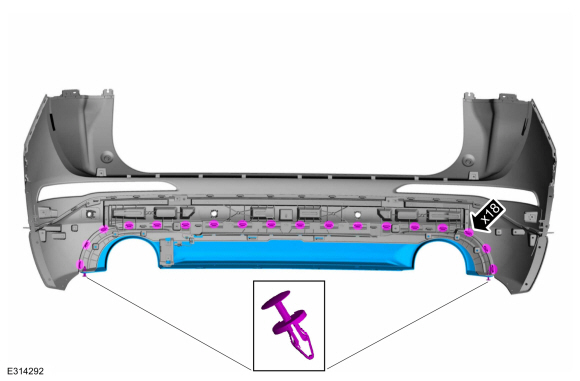

  1. Drill the rivets, release the tabs and remove the lower rear bumper cover valence

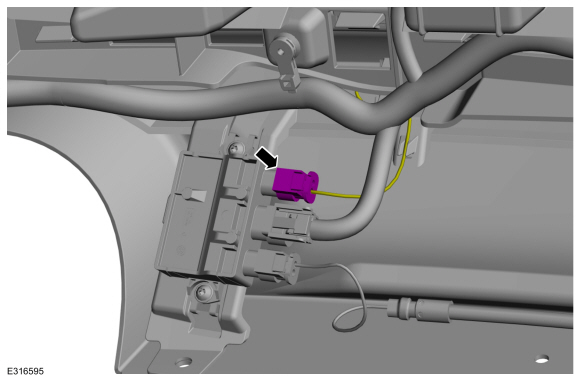

  1. Disconnect the hands-free liftgate actuation upper sensor electrical connector.

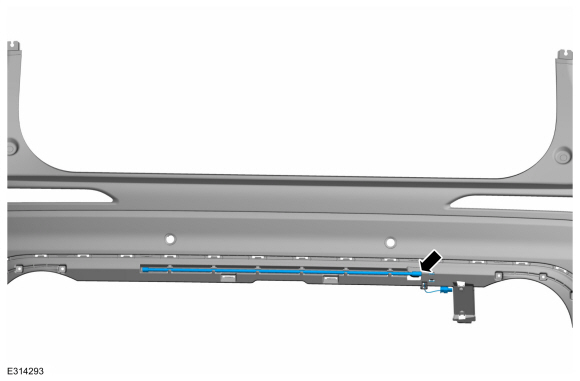

  1. Remove the upper hands-free liftgate sensor.

Installation

  1. To install, reverse the removal procedure.
