Ford Escape: Body Closures / Removal and Installation - Liftgate

Removal

NOTE: Removal steps in this procedure may contain installation details.

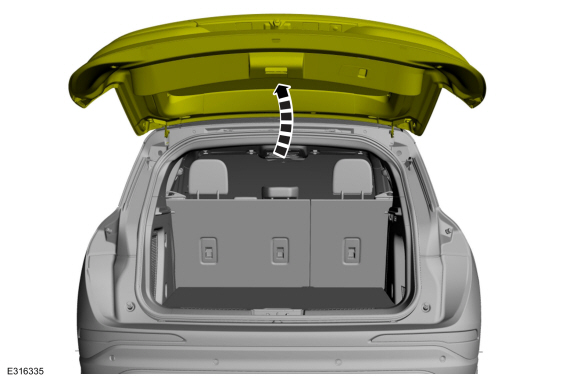

  1. Open the liftgate.
  1. Remove the high mounted stoplamp.
    Refer to: High Mounted Stoplamp (417-01 Exterior Lighting, Removal and Installation).
  1. Remove the liftgate trim panel.
    Refer to: Liftgate Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).
  1. Remove the C-pillar trim panel.
    Refer to: C-Pillar Trim Panel (501-05 Interior Trim and Ornamentation, Removal and Installation).

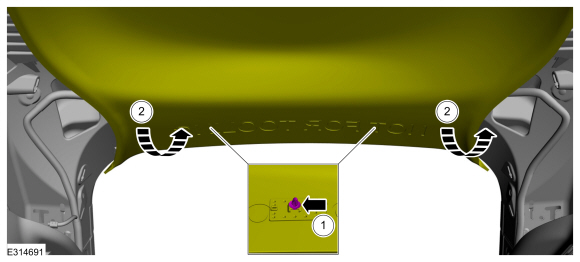

    1. Release the clips.
    1. Lower the rear headliner.

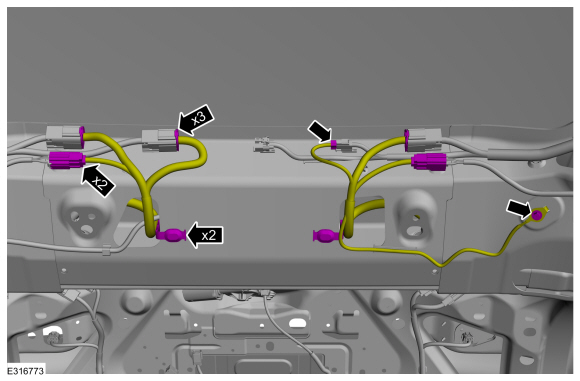

    • Disconnect the electrical connectors.
    • Remove the fastener.
      Torque: 97 lb.in (11 Nm)

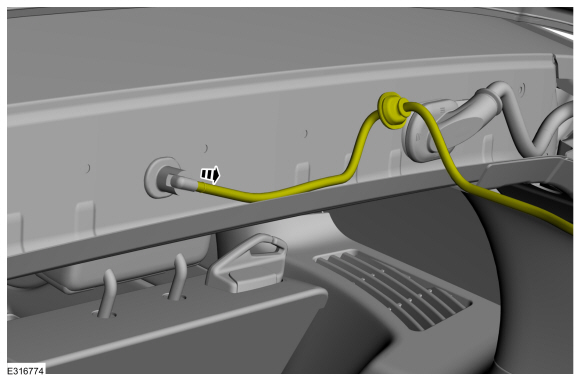

  1. Route the washer hose through the liftgate opening

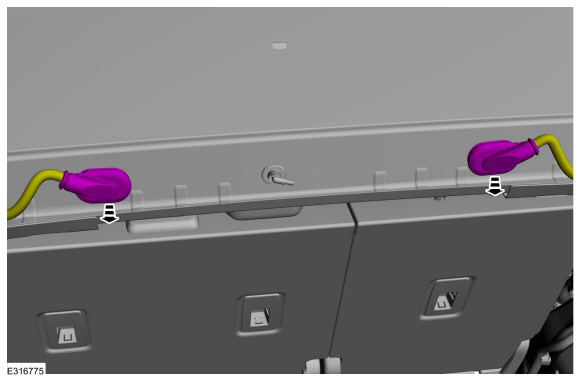

  1. Remove the grommet and route the harness out of the liftgate.

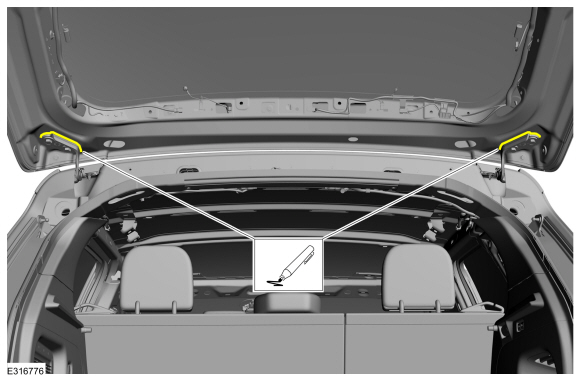

  1. Mark the location of the liftgate hinge.

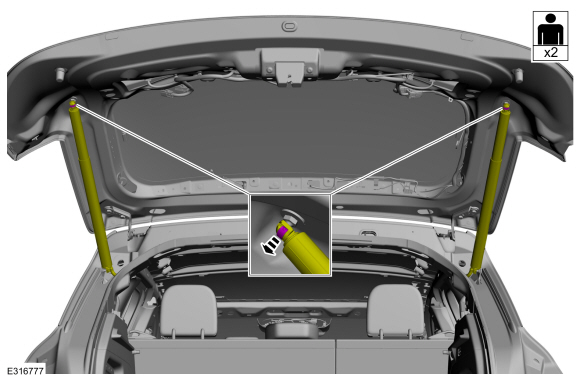

  1. NOTE: This step requires the aid of another technician.

    Remove the clips holding the liftgate strut or the power liftgate motor and position aside.

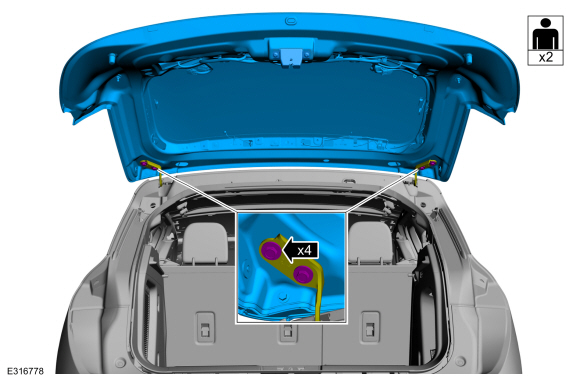

  1. NOTE: This step requires the aid of another technician.

    Remove the bolts and the liftgate.
    Torque: 22 lb.ft (30 Nm)

Installation

  1. To install, reverse the removal procedure.
  1. Align the liftgate as necessary.
    Refer to: Liftgate Alignment (501-03 Body Closures, General Procedures).

Vehicles with power liftgate

  1. Perform the power liftgate initialization.
    Refer to: Power Liftgate Initialization (501-03 Body Closures, General Procedures).
