Ford Escape: Rear End Sheet Metal Repairs / Removal and Installation - Quarter Panel

Special Tool(s) / General Equipment

Resistance Spotwelding Equipment
Scraper for Straight Edges
Spherical Cutter
Hot Air Gun
Air Body Saw
8 mm Drill Bit
MIG/MAG Welding Equipment
Spot Weld Drill Bit
Locking Pliers

Materials

Name Specification
Metal Bonding Adhesive
TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055
-

Seam Sealer
TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
-

Flexible Foam Repair
3M™ 08463, LORD Fusor® 121
-


Removal

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTICE: Sectioning may not take place within 50 mm of restraints, hinges or door striker mounting points. Failure to meet this guideline may result in compromising structural integrity.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

NOTE: The outer quarter panel is constructed of mild steel and may be sectioned at any point providing sectioning guidelines are met. The following is only suggested sectioning points. Adjust to meet repair needs.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).

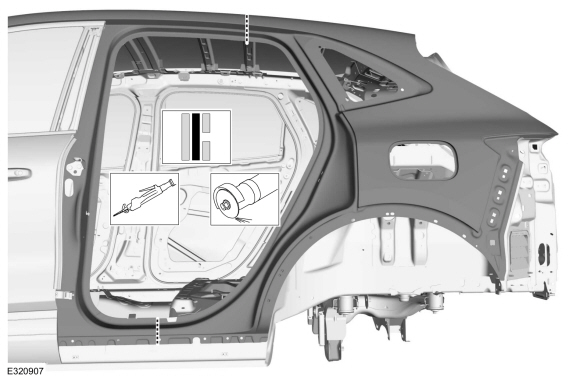

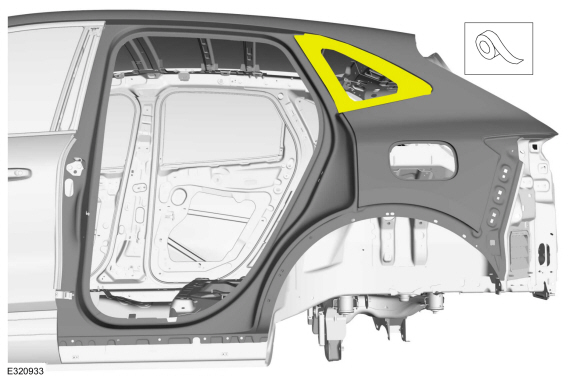

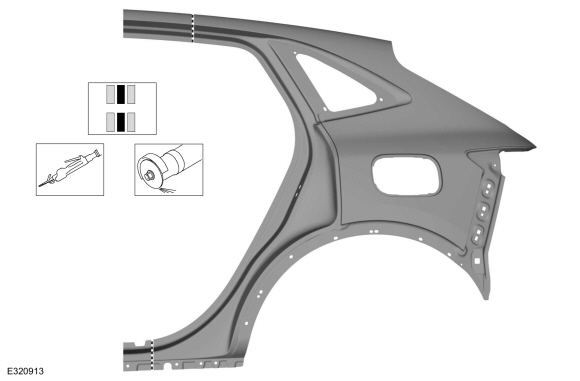

  1. Suggested sectioning points.
  1. Depower the SRS .
    Refer to: Supplemental Restraint System (SRS) Depowering (501-20B Supplemental Restraint System, General Procedures).
  1. Remove the rear wheel opening trim.
    Refer to: Rear Quarter Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the rear bumper.
    Refer to: Rear Bumper (501-19 Bumpers, Removal and Installation).
  1. Remove the tail lamp.
    Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).
  1. Remove the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Remove the rear wheel splash shield.

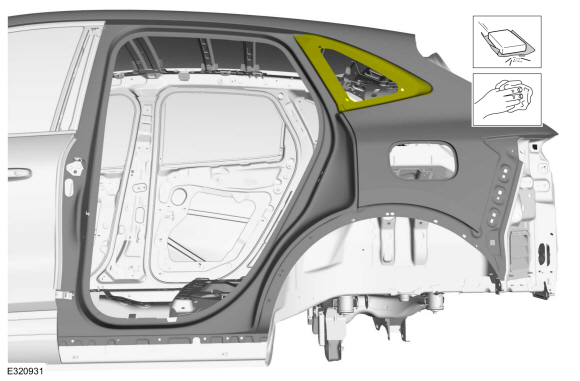

  1. Remove the quarter glass.
    Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).
  1. LH Side Only:
    Remove the fuel filler door, fuel filler bowl and position aside the fuel filler neck.
    Refer to: Fuel Filler Door Assembly (501-03 Body Closures, Removal and Installation).

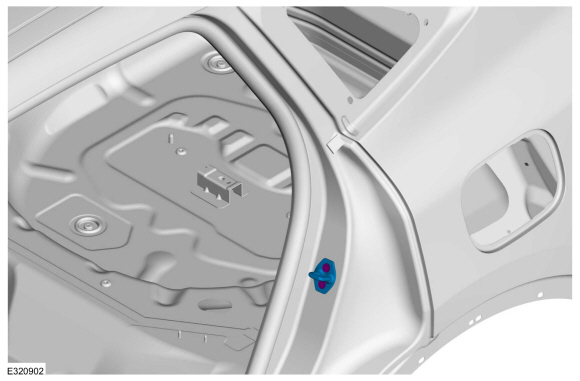

  1. Remove the rear door striker.
  1. Remove the rear door opening weather strip.
  1. Remove the roof ditch moulding.
    Refer to: Roof Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. position aside the liftgate opening weather strip
  1. If Necessary:
    Dimensionally restore the vehicle to pre-damage condition.
    Refer to: Body and Frame (501-26 Body Repairs - Vehicle Specific Information and Tolerance Checks, Description and Operation).

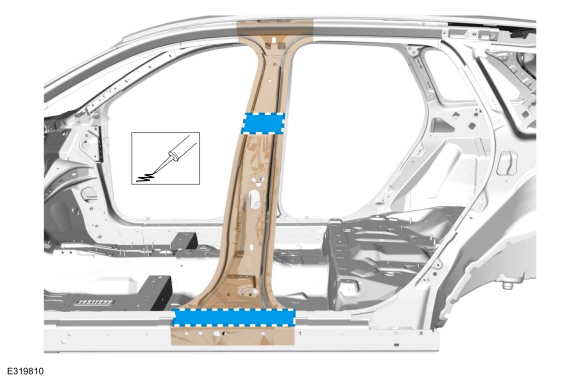

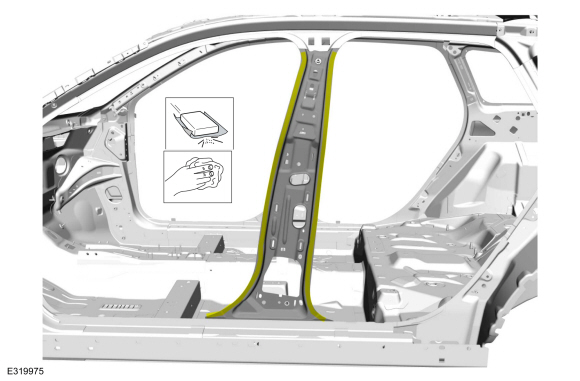

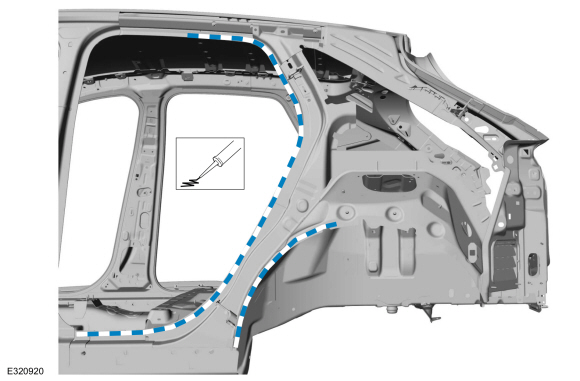

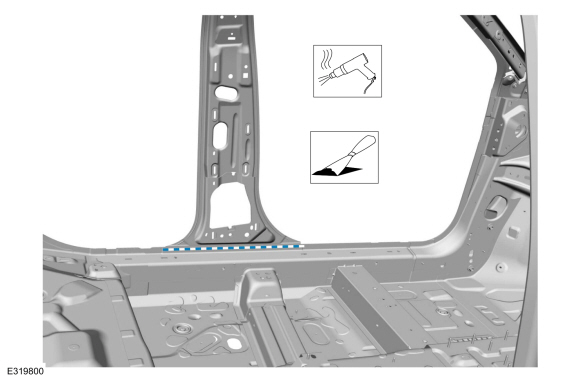

  1. Remove the seam sealer.

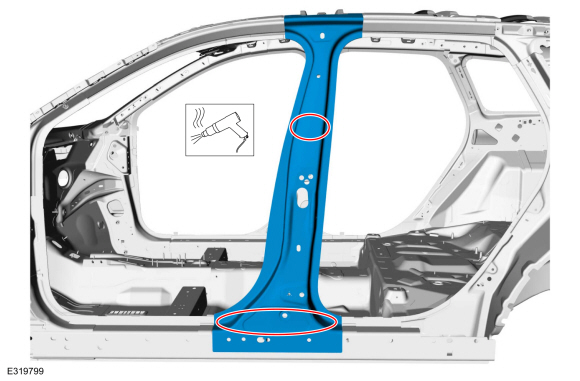

    Use the General Equipment: Hot Air Gun
    Use the General Equipment: Scraper for Straight Edges

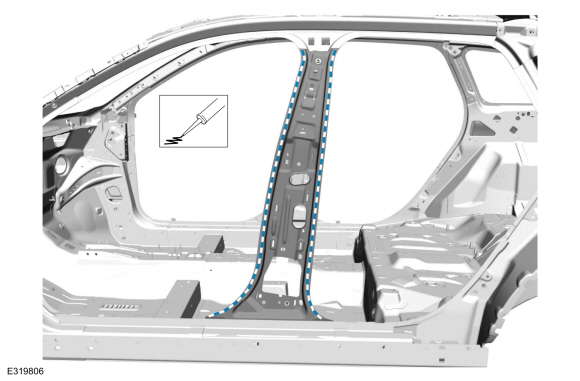

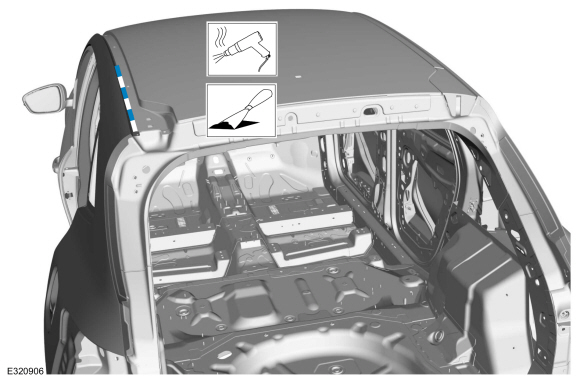

  1. Remove the seam sealer.
    Use the General Equipment: Hot Air Gun
    Use the General Equipment: Scraper for Straight Edges

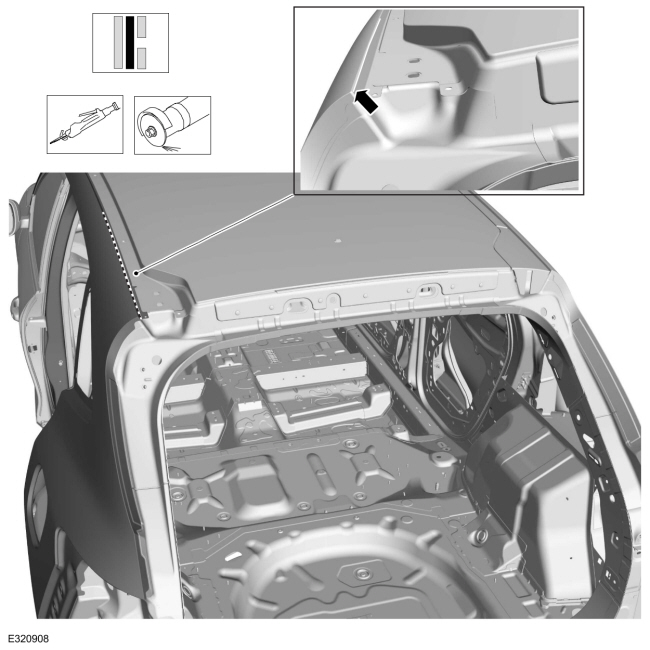

  1. Carefully cut the outer panel only.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter
  1. Carefully cut the outer panel only.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter

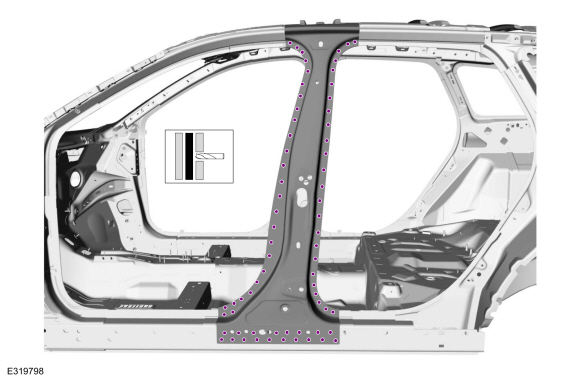

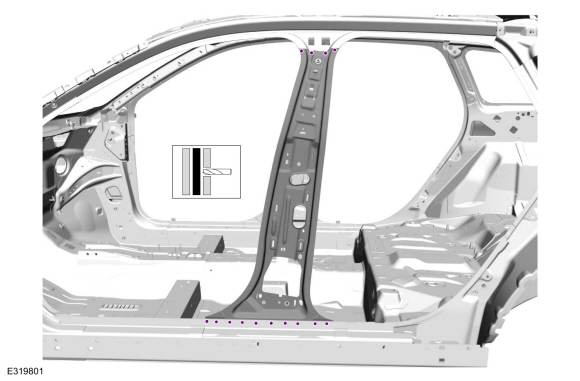

  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit
  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit

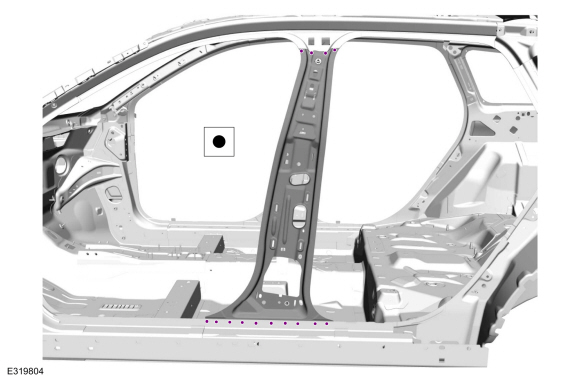

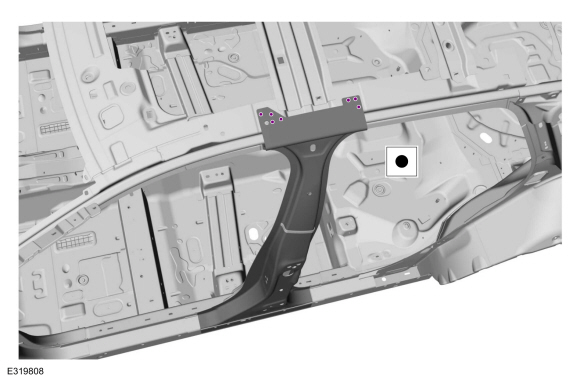

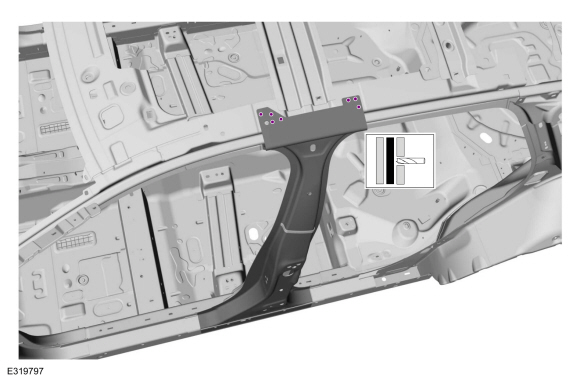

  1. Remove the welds.
    Use the General Equipment: Spot Weld Drill Bit
  1. NOTE: Pay particular attention to the location of adhesives, sealers and NVH materials to aid in installation.

    Remove the quarter panel.
    Use the General Equipment: Hot Air Gun

Installation

  WARNING: Electric vehicles damaged by a crash may have compromised high voltage safety systems and present a potential high voltage electrical shock hazard. Exercise caution and wear appropriate Personal Protective Equipment (PPE) safety gear, including high voltage safety gloves and boots. Remove all metallic jewelry, including watches and rings. Isolate the HV system as directed by the Ford Emergency Response Guide for the vehicle. Failure to follow these instructions may result in serious personal injury or death.

NOTICE: Battery electric vehicle (BEV), hybrid electric vehicle (HEV) and plug-in hybrid electric vehicle (PHEV) contain a high-voltage battery. Before cutting or welding near the high-voltage battery it must be removed to avoid damage.

NOTICE: The high-voltage battery in a battery electric vehicle (BEV), hybrid electric vehicle (HEV) or plug-in hybrid electric vehicle (PHEV) can be affected and damaged by excessively high temperatures. The temperature in some body shop paint booths can exceed 60° C (140° F). Therefore, during refinishing operations, the paint booth temperature must set at or below 60° C (140° F) with a bake time of 45 minutes or less. Temperatures in excess of 60° C (140° F) or bake durations longer than 45 minutes will require the high-voltage battery be removed from the vehicle prior to placing in the paint booth.

NOTICE: If refinishing cure temperatures exceed 60° C (140° F), the charge port light ring on plug-in vehicles must be removed.

NOTE: Factory welds may be substituted with resistance or metal inert gas (MIG) plug welds. Resistance welds may not be placed directly over original location. They must be placed adjacent to original location and match factory welds in quantity. Metal inert gas (MIG) plug welds must equal factory welds in both location and quantity.

NOTE: Left hand (LH) side shown, right hand (RH) side similar.

  1.   WARNING: Before beginning any service procedure in this manual, refer to health and safety warnings in section 100-00 General Information. Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions (100-00 General Information, Description and Operation).
    Refer to: High Voltage System Health and Safety Precautions - Overview (100-00 General Information, Description and Operation).
  1. Cut the replacement service panel to fit the repair area.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter
  1. Cut the replacement service panel to fit the repair area.
    Use the General Equipment: Air Body Saw
    Use the General Equipment: Spherical Cutter

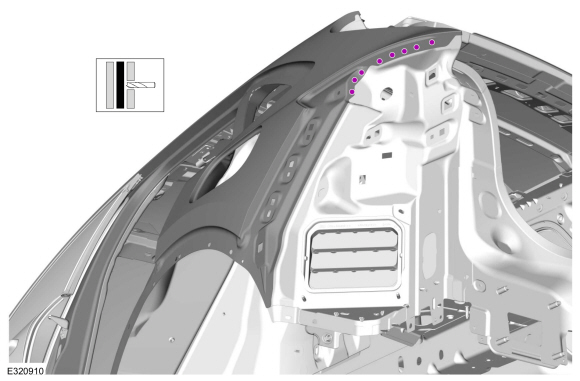

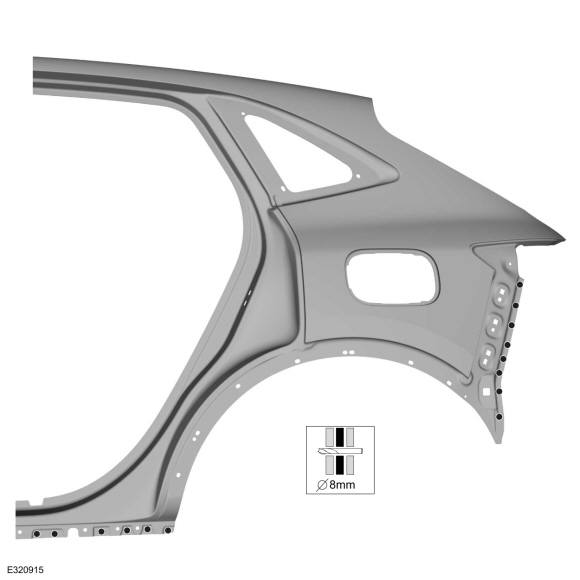

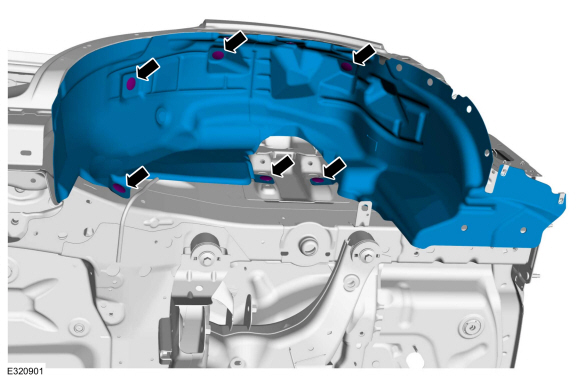

  1. Drill plug weld holes.
    Use the General Equipment: 8 mm Drill Bit
  1. Drill plug weld holes.
    Use the General Equipment: 8 mm Drill Bit
  1. Drill plug weld holes.
    Use the General Equipment: 8 mm Drill Bit
  1. Sand to remove old adhesive and clean.
  1. Sand to remove old adhesive and clean.

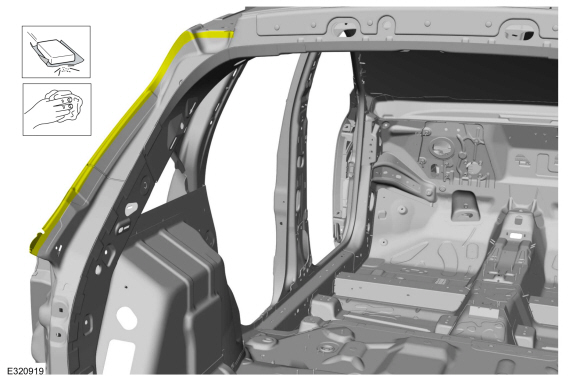

  1. Apply adhesive.
    Material: Metal Bonding Adhesive / TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055
  1. Apply adhesive.
    Material: Metal Bonding Adhesive / TA-1, TA-1-B, 3M™ 08115, LORD Fusor® 108B, Henkel Teroson EP 5055

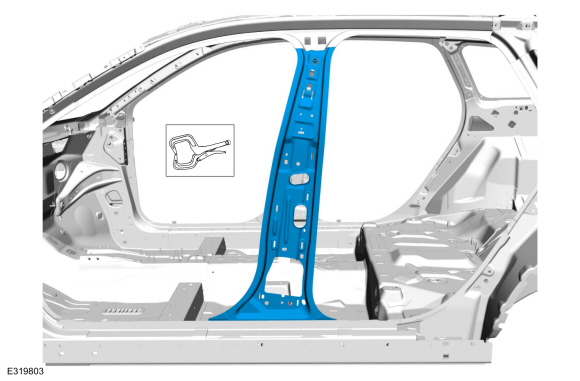

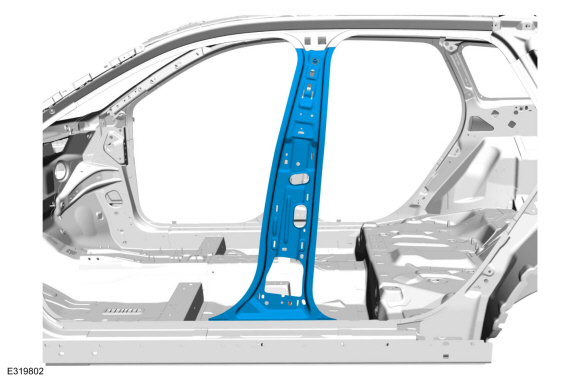

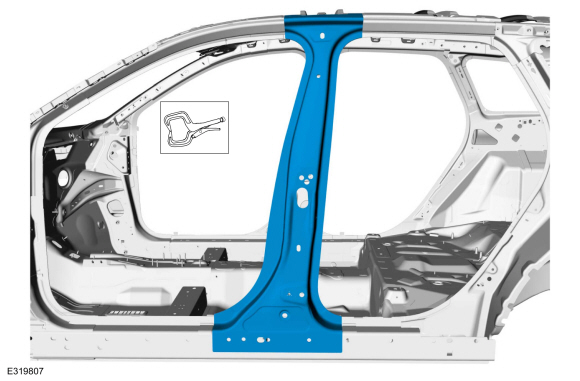

  1. Install, properly position and clamp the service panel.
    Use the General Equipment: Locking Pliers
  1. Install the welds.
    Use the General Equipment: Resistance Spotwelding Equipment
  1. Install the welds.
    Use the General Equipment: MIG/MAG Welding Equipment

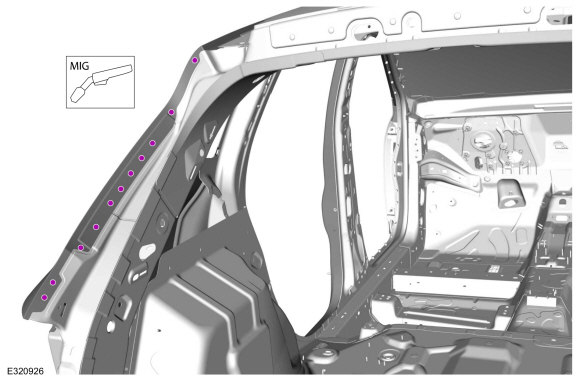

  1. Install the welds.
    Use the General Equipment: MIG/MAG Welding Equipment

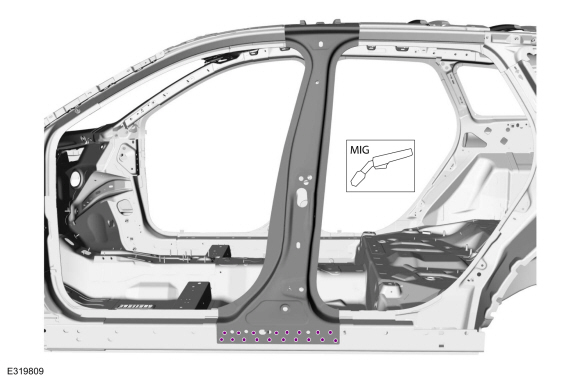

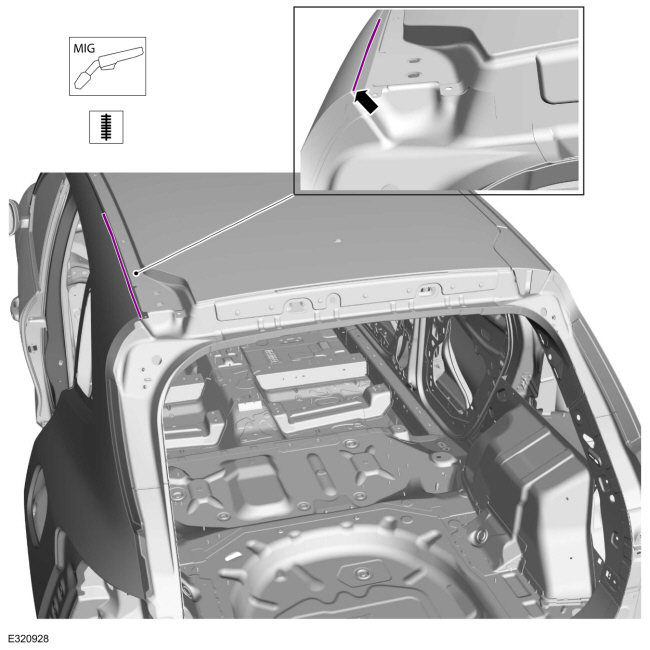

  1. Install the welds.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. NOTE: The use of a backer plate in sectioning joints is recommended.

    Completely seam weld the sectioning joints.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. NOTE: The use of a backer plate in sectioning joints is recommended.

    Completely seam weld the sectioning joints.
    Use the General Equipment: MIG/MAG Welding Equipment
  1. Dress all welds as required using typical metal finishing techniques and materials.

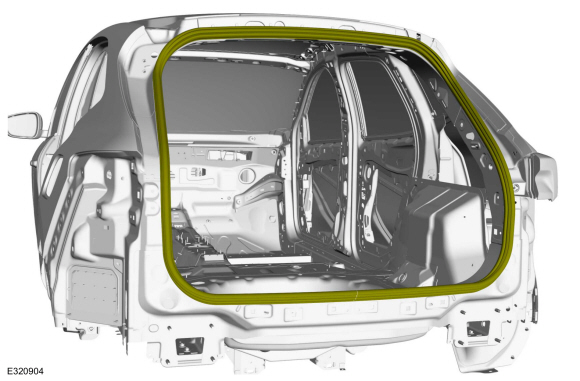

  1. Seam Sealing:
    All seams must be sealed to production level.

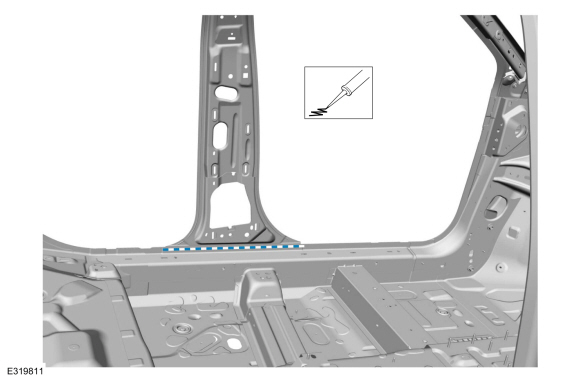

    Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
  1. Seam Sealing:
    All seams must be sealed to production level.
    Material: Seam Sealer / TA-2-B, 3M™ 08308, LORD Fusor® 803DTM
  1. Sand to remove e-coat and clean.
  1. Apply a Ford approved epoxy-based primer and allow to dry.
  1. Mask off the area.
  1. Refinish the entire repair using a ford approved paint system.
  1. Unmask the area.
  1. Apply NVH foam sealant in areas noted during removal.
    Material: Flexible Foam Repair / 3M™ 08463, LORD Fusor® 121
  1. Install the quarter glass.
    Refer to: Fixed Glass (501-11 Glass, Frames and Mechanisms, General Procedures).
  1. LH Side Only:
    Install the fuel filler door, fuel filler bowl and position the fuel filler neck in its original location.
    Refer to: Fuel Filler Door Assembly (501-03 Body Closures, Removal and Installation).
  1. Install the roof ditch moulding.
    Refer to: Roof Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).

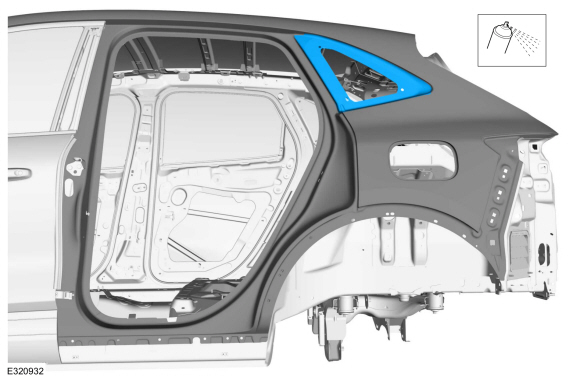

  1. Position the liftgate opening weather strip to the original location.
  1. Install the rear wheel splash shield.
  1. Install the rear wheel opening trim.
    Refer to: Rear Quarter Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Install the rear bumper and rear bumper cover.
    Refer to: Rear Bumper (501-19 Bumpers, Removal and Installation).
    Refer to: Rear Bumper Cover (501-19 Bumpers, Disassembly and Assembly).
  1. Install the tail lamp assembly.
    Refer to: Rear Lamp Assembly (417-01 Exterior Lighting, Removal and Installation).
  1. Install the rear door striker.
    Torque: 18 lb.ft (25 Nm)
  1. Install the rocker panel moulding.
    Refer to: Rocker Panel Moulding (501-08 Exterior Trim and Ornamentation, Removal and Installation).
  1. Install the rear door opening weather strip.
  1. Restore corrosion protection.
    Refer to: Corrosion Prevention (501-25 Body Repairs - General Information, General Procedures).
  1. Repower the SRS .
    Refer to: Supplemental Restraint System (SRS) Repowering (501-20B Supplemental Restraint System, General Procedures).
